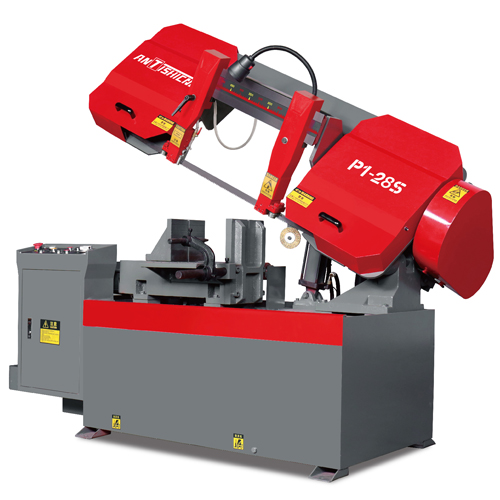

Product Details P1-28S scissor-type band sawing machine is a high-tech product developed by our company. This product has changed the heavy manual cyclic operation of the old sawing equipment for many years, and filled the blank in China. This machine set the essence of similar products at home a...
| Technical Specifications | P1-28S |
| Cutting capacity 0° (flat) (length x width) | Round:280mm
Square H:280mm W:400mm |
| Saw blade size | 34*1.1*4115mm |
| Main motor power | 2.2kw-4P |
| Hydraulic motor power | 0.75kw |
| Cooling motor power | 0.04KW |
| Overall dimensions (length x width x height) | 1860*1200*1800mm |
| Hydraulic oil tank capacity | 35L |
| Hydraulic system pressure | 3.0Mpa |
| Up and down sawing vertical precision | <0.1/100mm |
| Cooling system | Coolant circulation |
Product Details
P1-28S scissor-type band sawing machine is a high-tech product developed by our company. This product has changed the heavy manual cyclic operation of the old sawing equipment for many years, and filled the blank in China. This machine set the essence of similar products at home and abroad, reasonable structure, stable technical performance, easy to operate, high precision sawing, set of electronic, hydraulic, mechanical as a whole, high technology content. This machine is the most ideal equipment for large and medium-sized enterprises to cut materials in large quantities.
The main drive of this machine adopts worm gear box deceleration. The work feeding and workpiece clamping adopt hydraulic system. It is characterized by compact structure, convenient operation and maintenance.
Main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw frame connection device
Saw blade tension
Cooling system and chip sweeper
Hydraulic system
Electrical control system
Main Parts for the saw machine
| NO. | Part Description | Brand/Origin |
| 1 | Main motor | DASU |
| 2 | Hydrauli pump motor | YS |
| 3 | Water pump | BOHAO |
| 4 | The electromagnetic valve | YUKEN |
| 5 | Contactor | CHINT |
| 6 | Bearing | HAZHOU |
| 7 | Thermal overload relay | CHINT |
| 8 | Hydraulic Cylinder | HBJX |
| 9 | Transformer | CHINT |
| 10 | Turbine box (original) | HBJX |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Standard Equipment of the saw machine
Blade cleaning brush
Working light
Manual feed roller
Length stopper
Roller rack
One piece of bi-metal saw blade
One set of tools with tool box
Fast approaching device
Optional Parts and Optional Equipment
Bundle cutting
Roller stock table 2M long
Inverter
