Application of band saws in high-speed rail wheels
In the field of sawing machinery and equipment, traditional band saws have many disadvantages when cutting the two ends of shaft-shaped workpieces. The workpiece needs to be turned around and cut in batches, which can easily lead to errors in the cutting shape and distance at both ends, affecting use and inconvenience in operation. To solve these problems, Antis invented a special sawing machine for high-speed rail axles .
Machine structure
Overall structure : includes a base, a fixed clamping mechanism and two machine tools. The fixed clamping mechanism is used to clamp the axial column workpiece. The two machine tools are located at both ends of the workpiece. There is a driving device between the machine tool and the base, which can make the two machine tools move closer or farther away synchronously.
Driving device: It consists of a controller, control buttons and two power devices. The base is equipped with guide rails, and the machine tool moves along the guide rails driven by the power device. The control buttons can synchronously control the working status of the two power devices to achieve independent or synchronous movement of the machine tool. The power device contains two sets of servo motors and ball screws. The motor drives the screw to rotate and drive the machine tool to move.
Machine tool structure: The machine tool includes a saw frame, a bed, a column and a lifting cylinder. The oil intake of the lifting cylinders on the two machine tools is controlled by a hydraulic cylinder to achieve synchronous rising or falling of the saw frames. A single saw frame can also be controlled separately.
Fixed clamping mechanism: It has a support frame, a vise clamping device and a fixed slot. The vise clamping device has two sets of spaced vises, and the fixed slot has a V-shaped depression that can clamp the workpiece. The machine tool sawing feed port, vise port and fixed slot depression are in the same straight line to ensure that the workpiece is fixed and stable.
Other devices: The side of the base is equipped with a travel control mechanism to control the moving distance of the machine tool and detect errors. There is a material head collection box below the sawing outlet, and a chip removal device and a chip collection device below the feed inlet to keep the machine tool clean.

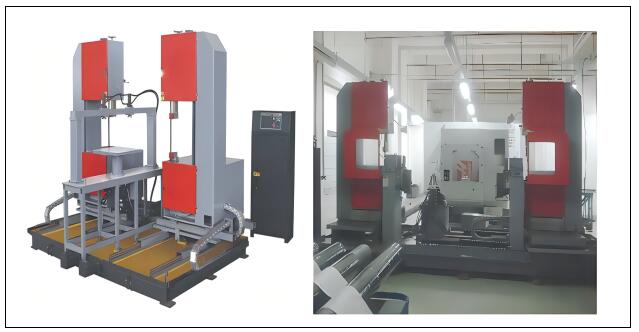

Drawing Description
Parameters
| Model Name | New | |
| Original | G5360/1700/7000 | |
| Max.cutting | Height | 600mm |
| capacity | Throat | 1700mm |
| Length | 7000mm | |
| Saw blade | Speed | 15-80 m/min |
| Size | 54×1.6 mm | |
| Tension | Hydraulic | |
| Guides | Carbide guides | |
| Cleaning | Wire brush & flood coolant | |
| Motor output | Blade | 11kw |
| Hydraulic | 2.2kw | |
| Coolant | 0.37kw | |
| Feed | 2kw(servo motor) | |
| Vise | T-slotted table using stop block | |
| Work feeding | Crane or forklift | |
| CV-Series Vertical Band Saw Features: | ||
| Standard Equipment: | ||
| 1. Blade cleaning brush. | ||
| 2. Working light. | ||
| 3. 1 pieces of bi-metal saw blade. | ||
| 4. One set of tools with tool box | ||
| 5. Laser projector | ||
How to use
When installing and using, place the workpiece in the fixed slot, clamp it with a vise, and control the machine tool to move to the appropriate position through the controller for cutting. This band saw machine can simultaneously cut both ends of the shaft-shaped workpiece with a single control and dual machine tools, improving work efficiency and sawing quality.
The band saw realizes the simultaneous cutting of both ends of the shaft-shaped workpiece by a single-control dual machine tool, which greatly improves the work efficiency, ensures the sawing quality, is easy to operate, and brings a new solution for the processing of shaft-shaped workpieces.
