Automatic high speed circular saw machine application
High speed metal circular saw machine is the equipment that uses the saw blade to cut the workpiece. It can cut metal materials quickly and accurately. It is widely used in the field of metal processing, especially for high-speed precision cutting of various non-ferrous metal pipes and bars.

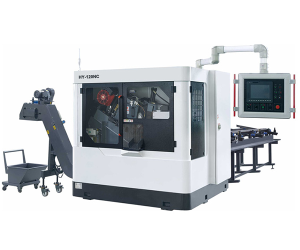

Recently, the Shanghai ANTS team received an inquiry from a fire equipment manufacturer in Mexico. The customer needs to cut aluminum rods 75-115mm in diameter, 4.8m in length, 15-30mm in thickness and 0.25mm in tolerance, equipped with a chip extracter and automatic feeding device. We recommended to him a circular saw HY-120NC, which can cut 110 aluminum rods with a diameter of 115mm per hour.
Cutting capacity | ||
Round bar● | mm | 30-120 |
Square bar■ | mm | 30~80 |
Round pipe○ | mm | 30-120 |
Square pipe□ | mm | 30~80 |
Saw head spindle | ||
TCT type Super hard circular saw blade | mm | 360/380 X 2.6T |
Pin hole and aperture | mm | 4xφ11 XPCD90X φ40 |
Spindle motor | kw | 15(4P) |
Spindle speed | rpm | 40-160 |
Saw head feeding method | AC servo motor+ball screw(30° tilt feeding) | |
Main clamping vises | Hydraulic, one set of vertical and horizontal clamping | |
Chips cleaning device | Passive wire brush/power wire brush(optional) | |
Gear backlash compensation device | Through shaft type magnetic powder brake | |
Work–piece feeding vise | ||
Workpiece feeding drive method | AC servo motor+ball screw | |
Feeding vise clamping method | Hydraulic, horizontal clamping | |
Workpiece front end removal length | mm | 10~99(This function could be closed) |
Workpiece final remnant length | mm | 100+α(α is smaller than the setup cutting length) |
Single feeding length range | mm | 10-800 |
Automatic work–piece feeding device | ||
Allowable length to be loaded | mm | 3000-6000 |
Feeding method | Pr-arranged type|hydraulic lift | |
Hydraulic devices | ||
Hydraulic motor | kw | 2.25(4P) |
Rated pressure of hydraulic system | MPa | 4.5~7 |
Hydraulic tank capacity | L | 150 |
Cutting fluid cooling device | ||
Cooling motor | kw | 0.19(2P) |
Machine size and weight | ||
Weight(host machine+roller table) | kg | 5400 |
Size(L x W) | mm | 7234X3339 |
Our machine benefits:
1. The cutting tool adopts imported TCT circular saw blade. Saw blade long service life, saw slit narrow, save material.
2, using logic controller automatic control, touch screen parameter setting. The material head, material tail, workpiece and chips can be transported to the specified position, and the whole process is controlled digitally.
3, the feed device and feed device adopts advanced servo motor and high-precision ball screw feed mode.
4, using quasi-dry spray cooling system, centralized automatic lubrication system, sawdust automatic collection system, the overall performance of the equipment is reliable.
5. Adjustable high rigidity saw blade stabilizer, completely prevent circular saw blade vibration and deflection, to ensure high cutting accuracy.
6, all hydraulic and pneumatic system components are imported well-known brand products, the overall performance of the equipment is reliably guaranteed.
7, with independent intellectual property rights of the power head, gear clearance device and supporting parts are imported to ensure the cutting accuracy of the circular saw machine and the service life of the circular saw blade.
