Can LNG carrier plates also be cut with a saw?

Existing LNG shipboard plates are generally processed by two-way sawing with multiple sawing equipment, which has high sawing costs, resulting in the loading and unloading time, re-calibration time and accuracy of the formed plates failing to meet the requirements.

In order to solve the above problems, the ANTISHICNC team invented a vertical band saw for sawing LNG ship plates. The LNG ship plates to be sawed are placed on a sawing device to complete bidirectional sawing, reducing the cost of manual loading and unloading, and the sawing accuracy fully meets the design requirements.

Sawing machine structure

The overall structure includes a horizontal workbench, a vertical band saw, a vertical workbench, and a feeding roller frame. The horizontal workbench is equipped with a device for driving the vertical band saw to move horizontally, and the vertical workbench is equipped with a device for driving the feeding roller frame to move vertically. The plates to be cut are placed on the feeding roller frame.

Driving devices of each part: The horizontal worktable driving device is composed of a horizontal worktable servo motor, a horizontal ball screw pair, and a horizontal guide slider pair; the vertical worktable driving device is composed of a vertical worktable servo motor, a vertical ball screw pair, and a vertical guide slider pair; the roller driving device includes a feed rack servo motor and a chain.

Saw blade guide device: The saw frame of the vertical band saw machine is equipped with upper and lower saw blade rotation guide devices, which can twist the band saw blade between 0° – 180°. The two have the same structure, both containing a guide head rotation servo, a rotating small gear, a rotating large gear, a saw blade guide clamping mechanism, and a guide head support.

Working process:

Start the electrical system, place the plate on the feeding roller rack, the feeding rack servo motor feeds the plate and feeds back the speed, the longitudinal table servo motor moves at the matching speed, and the transverse table drives the vertical band saw to cut horizontally. After the sawing is completed, the upper and lower saw band rotating guide devices twist the band saw blade 180°, the longitudinal table moves in the opposite direction, and the transverse table drives the saw to cut in the opposite direction, and the operation is cyclic. The sawing machine also has a hydraulic tensioning device for the saw blade and a broken belt protection device to ensure the safety of equipment and personnel.

Technical advantages:

Compared with the existing technology, this sawing machine can complete bidirectional sawing on a single device, reducing the cost of manual loading and unloading, and has high sawing accuracy; the layout is simple and occupies little space; it can reciprocate the workpiece to reduce the time for re-calibration and ensure uniform workpiece accuracy.

The following are the parameters of this series of sawing machines:

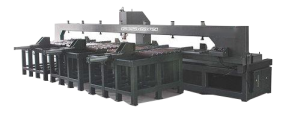

Reference

images
model G5360/120/250 G5360/120/600 G5380/150/250 G53120/150/300 G53180/200/300
Sawingcapacity Throat height:

600 mm

Throat Depth:

1200 mm

journey:

2500 mm

 Throat height :

600 mm

Throat depth :

1200 mm

journey :

6000 mm

 Throat height:

800 mm

Throat Depth:

1500 mm

journey :

2500 mm

 Throat height:

1200 mm

Throat Depth:

1500 mm

journey:

3000 mm

 Throat height:

1800 mm

Throat Depth:

2000 mm

journey:

3000 mm
Band

saw

blade

 Specifications(mm):

54×1.6×8020

Line speed (m/min):

20-70(Variable frequency)

Tensioning method: hydraulic

 Specifications(mm):

54×1.6×8020

Line speed (m/min):

20-70(Variable frequency)

Tensioning method: hydraulic

 Specifications(mm):

54×1.6×8900

Line speed (m/min):

20-70(Variable frequency)

Tensioning method:

Hydraulic

 Specifications(mm):

67×1.6X9550

Line speed (m/min):

20-70(Variable frequency)

Tensioning method:

Hydraulic

 Specifications(mm):

67×1.6

Line speed (m/min):

20-70(Variable frequency)

Tensioning method:

Hydraulic
Motor

power

 Main motor (kW):

7.5(4P)

Hydraulic motor (kW):

3.75+0.75

Feed servo(kW):

2

Cooling pump (kW):

0.55

Chip conveyor (kW):

0.75(optional)

 Main motor (kW):

7.5 (4P)

Hydraulic motor (kW):

3.75+0.75

Feed servo(kW):

2

Cooling pump (kW): 0.55

Chip conveyor (kW): 0.75 (optional)

 Main motor (kW):

11 (4P)

Hydraulic motor (kW):

3.75+0.75

Feed servo (kW):

2

Cooling pump (kW): 0.55

Chip conveyor (kW): 0.75 (optional)

 Main motor (kW):

15(4P)

Hydraulic motor (kW):

3.75+0.75

Feed servo(kW):

2

Cooling pump (kW): 0.55

Chip conveyor (kW): 0.75 (optional)

 Main motor (kW):

18.5(4P)

Hydraulic motor (kW):

3.75+0.75

Feed servo(kW):

2

Cooling pump (kW): 0.55

Chip conveyor (kW): 0.75 (optional)
Control method PLC+touch screen+ button +remote control PLC+touch screen+ button +remote control PLC+touch screen+ button +remote control PLC+touch screen+ button +remote control PLC+touch screen+ button +remote control
Main

transmission

mode

 Direct-drive gear reducer Direct-drive gear reducer Direct-drive gear reducer Direct-drive gear reducer Direct-drive gear reducer
Feeding method Servo drive Servo drive Servo drive Servo drive Servo drive
Work

clampingmethod

 Manual Manual Manual Manual Manual
Feeding method Hydraulic lifting Hydraulic lifting Hydraulic lifting Hydraulic lifting Hydraulic lifting
Single

feeding

stroke

 500 500 500 500 500
Workbench

height

 1575 1575 1575 1575 1875
Overall

dimensions

 4700X5200X3470 8200X5200X3470 4700X5500X3670 4700X5200X3870 6100X6150X5160

This series of sawing machines has demonstrated unique advantages in many fields such as ship processing with its excellent performance parameters, scientific and reasonable structural design, and intelligent and efficient control system . Whether it is precision manufacturing with strict requirements on sawing accuracy or processing companies pursuing efficient mass production, this sawing machine can be a powerful assistant, providing strong support for companies to reduce production costs, improve production efficiency and product quality. I believe that in the future, this LNG ship special sawing machine will continue to shine in the industry and help more companies achieve high-quality development.

If you have any needs for cutting ship materials , please contact the Shanghai ANTISHICNC team, and we will have someone to provide you with solutions.
