Many years of production experience, high-quality machines
Factory direct sales, welcome to visit the factory
24-hour telephone, email online service.
No installation required, simple operation, support video teaching

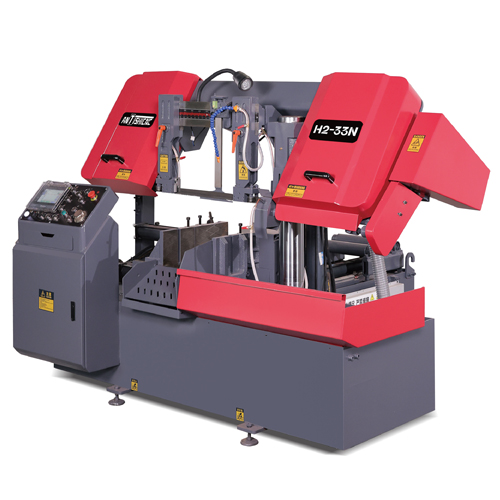

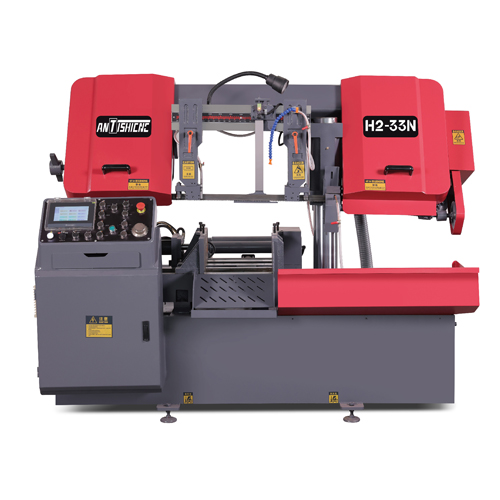

Technical Specifications| Model | H2-33N |
Cutting capacity 0° (flat) (length x width) | 330*330 mm |
Cutting capacity 0° (round) | 330 mm |
Cutting capacity 0° (square) | 330*330 mm |
Cutting speed infinitely variable | 20/40/50/75 m/min |
Stop length(single stroke) | 500 mm |
Accuracy of the feeding(single feeding) | ±0.2 mm |
Saw blade size | 34*1.1*4115 mm |
Saw blade tension type | Manual |
Mian motor power | 4 kw |
Oil pump motor power | 0.75 kw |
Coolant pump motor power | 40W |
Overall dimensions (length x width x height) | 1950x2150x1700mm |
Weight | 1400kg |
Main Parts for the saw machine
NO. | Part Description | Brand/Origin |
1 | Main motor | CHINA |
2 | Oil pump motor | CHINA |
3 | Oil pump (variable pump) | CHINA |
4 | The electromagnetic valve | CHINA |
5 | Breaker | CHINA |
6 | AC contactor | CHINA |
7 | Thermal relay | CHINA |
8 | Small relay | CHINA |
9 | Transformer | CHINA |
10 | Worm gear box | CHINA |
11 | PLC | CHINA |
12 | Touch screen | CHINA |
13 | Inverter | CHINA |
Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Hydraulic part clamping
Bimetallic band saw blade
Support with roller
Coolant system
Work lamp
Operating tools
Operator manual
NO. | Spare parts Description | Specification | Function |
1 | Detachable rack | 2 meter | Take the load of materials |
2 | Press-up device | H2-33N | Installed on a vice |
3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
4 | Spiral chip conveyor | H2-33N | Remove the cutting chips |
5 | Saw belt hydraulic tensioning | H2-33N | Tension the saw blade hydraulically |
6 | Inverter | H2-33N |
