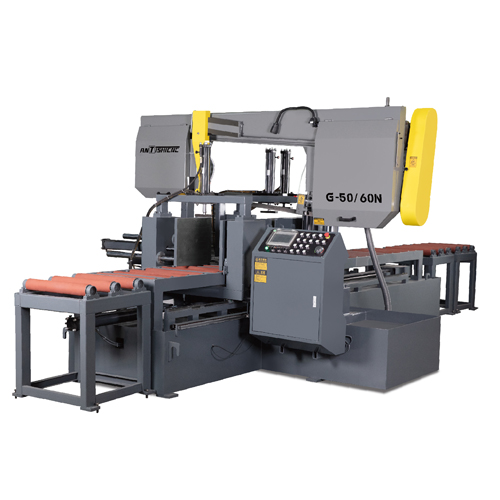

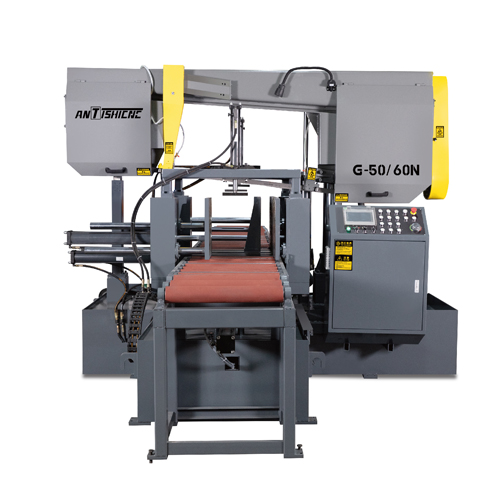

Fully Automatic PLC Control Horizontal Straight Cutting Band Sawing Machine G-50/60N

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications G-5060N
Cutting capacity 0° (flat) (length x width) ●500mm ■500*600mm
Blade speed 23/46/73 m/min
Saw blade size 41*1.3*6040mm
Main motor power 4kw-6P
Hydraulic motor power 1.5kw
Cooling motor power 0.09KW
Single feeding length 2000mm
Table height 890mm
Roller table size 700*710*870mm
Overall dimensions (length x width x height) 3000*5250*2100mm
Machine dimensions(Saw frame raised) 3000*5250*2300mm
Weight(NET WEIGHT) 1700kgs
Machine input power voltage A.C380V, 50HZ

Product Details

This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts Good process equipment, its cutting tool using bimetallic band saw blade, narrow saw kerf, less consumables, small power required, etc., is a kind of energy-saving and efficient cutting equipment.

This machine tool adopts double-column structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.

Features

Rigid dual column frame with column guide for superior stability

Control panel with touchscreen

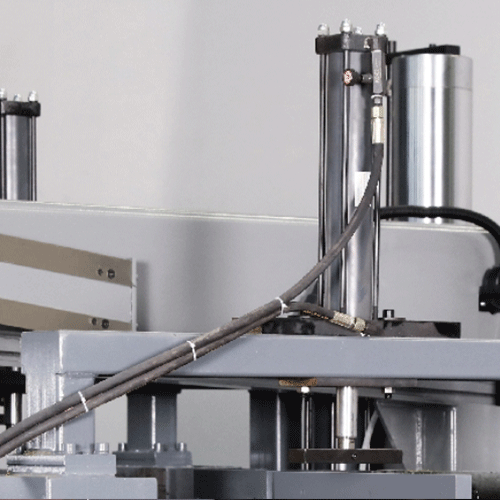

Hydraulic vise work-piece clamping

Automatic saw blade overload control

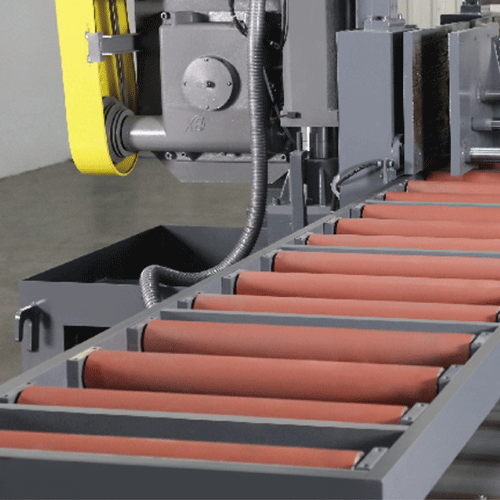

Support table with integrated feed rollers

Material feed system with work-piece guide rollers

Fast approaching bar detection of the work-piece height

Feed roller table 700 mm (27 inch)

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor CHINA
2 Htdraulic pump motor CHINA
3 Water pump motor CHINA
4 The electromagnetic valve CHINA
5 Breaker CHINA
6 AC contactor CHINA
7 Thermal relay CHINA
8 Small relay CHINA
9 Transformer CHINA
10 Worm gear box CHINA
11 PLC CHINA
12 Touch screen CHINA
13 Inverter CHINA
14 Turbine box CHINA
15 Button CHINA

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine
Hydraulic part clamping
Bimetallic band saw blade
Support with roller
Coolant system
Work lamp
Operating tools
Operator manual
Optional Parts and Optional Equipment
NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Press-up device G-50/60N Installed on a vice
3 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral chip conveyor G-50/60N Remove the cutting chips
5 Saw belt hydraulic tensioning G-50/60N Tension the saw blade hydraulically
6 Inverter G-50/60N
