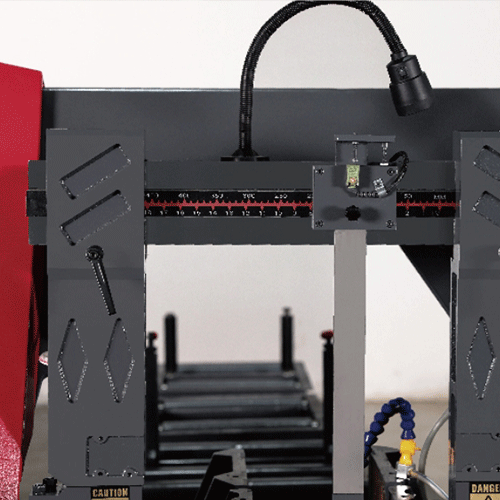

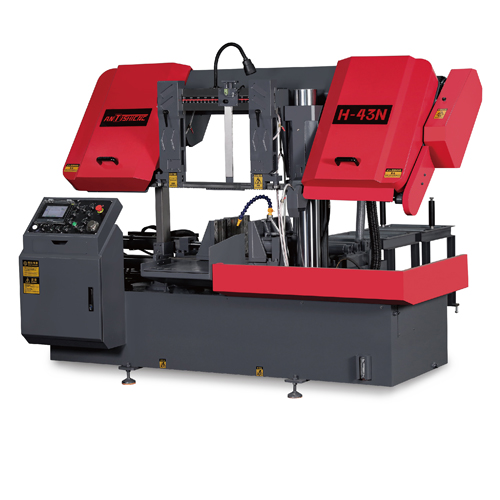

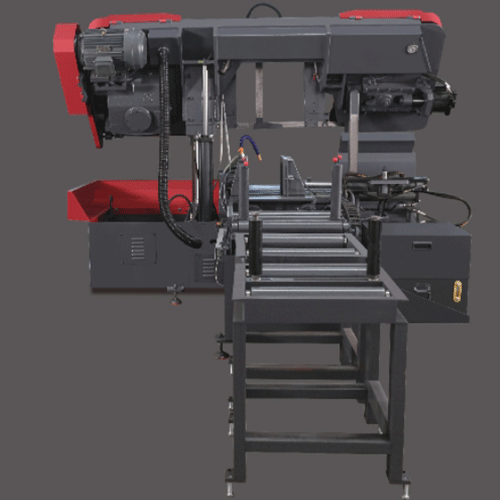

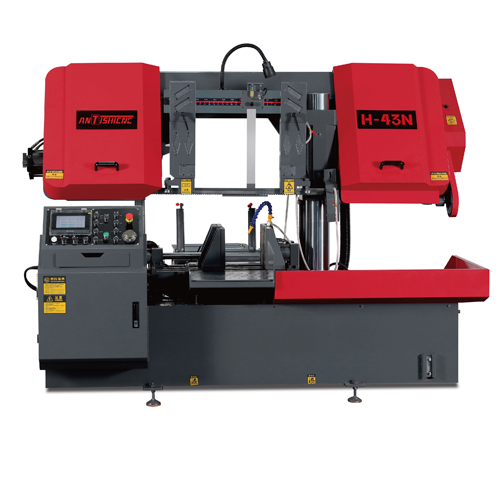

Fully Automatic PLC Control Horizontal Straight Cutting Band Sawing Machine H-43N

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H-43N
Cutting capacity 0° (flat) (length x width) ■430*430mm
Feeding method Automatic
Clamping method Hydraulic
Saw blade size 41*1.3*5150mm
Saw blade tension type Hydraulic
Saw blade lubrication method Emulsion spraying
Main motor power 5.5kw-6P
Hydraulic motor power 1.5kw
Single feeding length 500mm
Table height 620mm
Cooling motor power 0.09KW
Blade guide arm 550*150*80mm
Overall dimensions (length x width x height) 2330mm×2700mm×1640mm
Machine dimensions(saw frame raised) 2330mm×2700mm×1800mm
Weight(NET WEIGHT) 2390kgs
Machine input power voltage A.C380V, 50HZ

Product Details

This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts Good process equipment, its cutting tool using bimetallic band saw blade, narrow saw kerf, less consumables, small power required, etc., is a kind of energy-saving and efficient cutting equipment.

This machine tool adopts double-column structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.

Features

Rigid dual column frame with column guide for superior stability

Control panel with touchscreen

Hydraulic vise work-piece clamping

Automatic saw blade overload control

Support table with integrated feed rollers

Material feed system with work-piece guide rollers

Fast approaching bar detection of the work-piece height

Feed roller table 700 m (27 inch)

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor CHINA
2 Htdraulic pump motor CHINA
3 Water pump motor CHINA
4 The electromagnetic valve CHINA
5 Breaker CHINA
6 AC contactor CHINA
7 Thermal relay CHINA
8 Small relay CHINA
9 Transformer CHINA
10 Worm gear box CHINA
11 PLC CHINA
12 Touch screen CHINA
13 Inverter CHINA
14 Turbine box CHINA
15 Button CHINA

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Hydraulic part clamping

Bimetallic band saw blade

Support with roller

Coolant system

Work lamp

Operating tools

Operator manual

Optional Parts and Optional Equipment
NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Press-up device H-43N Installed on a vice
3 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral chip conveyor H-43N Remove the cutting chips
5 Saw belt hydraulic tensioning H-43N Tension the saw blade hydraulically
6 Inverter H-43N
