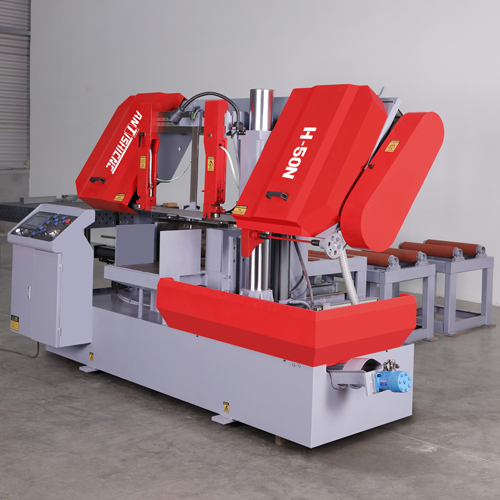

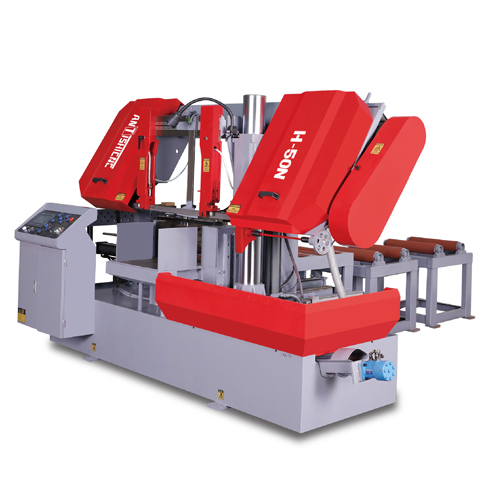

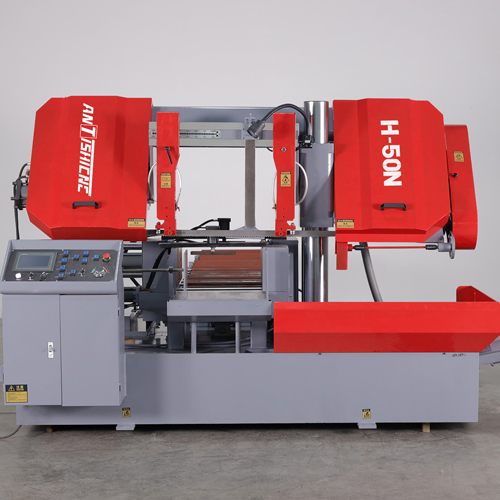

Fully Automatic PLC Control Horizontal Straight Cutting Band Sawing Machine H-50N

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H-50N
Cutting capacity 0° (flat) (length x width) ●500mm     ■500×500mm
Band saw blade cutting line speed 23/44/71m/min
Feed speed adjustment method Hydraulic stepless speed control
Clamping method Hydraulic
Saw blade size 1.3×41×5540mm
Saw blade tension type Hydraulic
Main motor power 5.5kw-6p
Hydraulic motor power 1.5kw
Cooling motor power 0.09KW
Single feeding length 500mm
Number of processing size setting groups 1~5 groups
Maximum length of feeding material per group 50000mm
Setting number of processing per group 1~999 pcs.
Height of working table from the ground 740mm
Sawing process PLC programmable controller setting
Overall dimensions (length x width x height) 2700mm×2200mm×1900mm
Weight(NET WEIGHT) 2850kgs
Machine input power voltage A.C380V, 50HZ
Hydraulic tank capacity 70L
Cooling tank capacity 100L

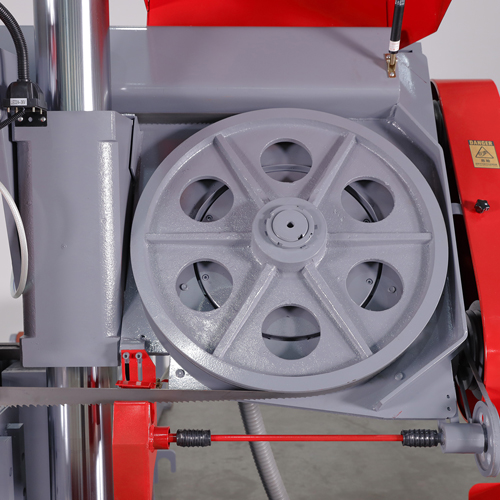

Product Details

This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts Good process equipment, its cutting tool using bimetallic band saw blade, narrow saw kerf, less consumables, small power required, etc., is a kind of energy-saving and efficient cutting equipment.

This machine tool adopts double-column structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.

Features

Rigid dual column frame with column guide for superior stability

Control panel with touchscreen

Hydraulic vise work-piece clamping

Automatic saw blade overload control

Support table with integrated feed rollers

Material feed system with work-piece guide rollers

Fast approaching bar detection of the work-piece height

Feed roller table 700 m (27 inch)

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor LIANIXNG
2 Hydraulic pump motor SANYOU
3 PLC DELTA
4 Touch screen KUNLUN
5 Contactor CHINT
6 Linear guides SHANGYIN
7 Bearing Harbin
8 Magnetic scale WENZHOU

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Hydraulic part clamping

Bimetallic band saw blade

Support with roller

Coolant system

Work lamp

Operating tools

Operator manual

Optional Parts and Optional Equipment
NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Press-up device H-50N Installed on a vice
3 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral chip conveyor H-50N Remove the cutting chips
5 Saw belt hydraulic tensioning H-50N Tension the saw blade hydraulically
6 Inverter H-50N
