| Technical Specifications | UP–65N |
| Cutting capacity 0° (flat) (length x width) | ■650*650 |
| Saw blade size | 54*1.6*7420mm |
| Blade speed | 0-80(inverter)m/min |
| Main motor power | 7.5kw |
| Hydraulic motor power | 2.2kw |
| Cooling motor power | 0.09KW |
| Table height | 730mm |
| Blade guide arm | 820*200*80mm |
| Roller table size | 600*735*720mm |
| Overall dimensions (length x width x height) | 3660mm×2280mm×2350mm |
| Weight(NET WEIGHT) | 4420kgs |
| Machine input power voltage | A.C380V, 50HZ |
| Machine dimensions(saw frame raised) | 3660mm×2280mm×2660mm |
Product Details
This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts Good process equipment, its cutting tool using bimetallic band saw blade, narrow saw kerf, less consumables, small power required, etc., is a kind of energy-saving and efficient cutting equipment.

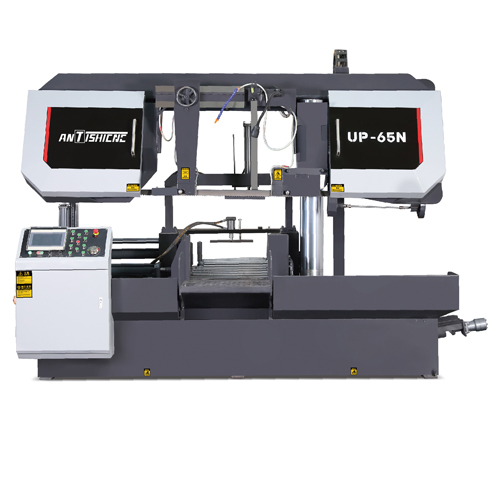

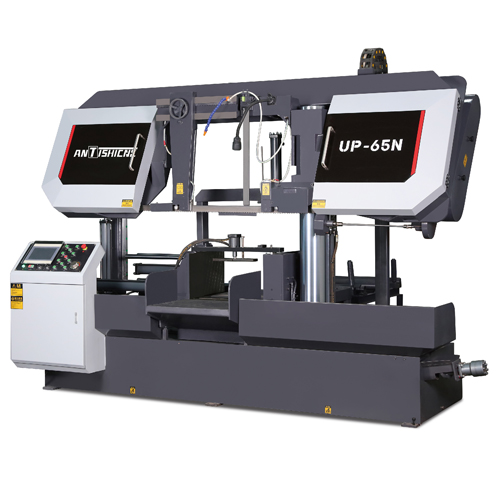

This machine tool adopts double-column structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.
Features
Rigid dual column frame with column guide for superior stability

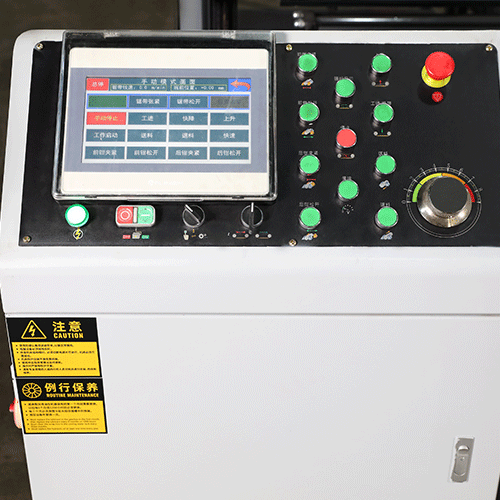

Control panel with touchscreen

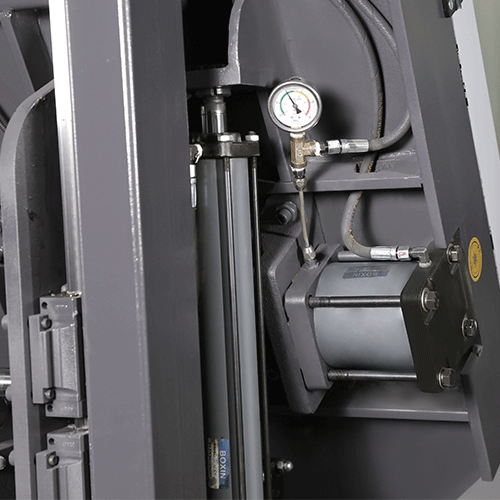

Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Feed roller table 700 mm (27 inch)
Main Parts for the saw machine
| NO. | Part Description | Brand/Origin |
| 1 | Main motor | CHINA |
| 2 | Htdraulic pump motor | CHINA |
| 3 | Water pump motor | CHINA |
| 4 | The electromagnetic valve | CHINA |
| 5 | Breaker | CHINA |
| 6 | AC contactor | CHINA |
| 7 | Thermal relay | CHINA |
| 8 | Small relay | CHINA |
| 9 | Transformer | CHINA |
| 10 | Worm gear box | CHINA |
| 11 | PLC | CHINA |
| 12 | Touch screen | CHINA |
| 13 | Inverter | CHINA |
| 14 | Turbine box | CHINA |
| 15 | Button | CHINA |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Hydraulic part clamping
Bimetallic band saw blade
Support with roller
Coolant system
Work lamp
Operating tools
Operator manual
| NO. | Spare parts Description | Specification | Function |
| 1 | Detachable rack | 2 meter | Take the load of materials |
| 2 | Press-up device | UP-65N | Installed on a vice |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 4 | Spiral chip conveyor | UP-65N | Remove the cutting chips |
| 5 | Saw belt hydraulic tensioning | UP-65N | Tension the saw blade hydraulically |
| 6 | Inverter | UP-65N |
