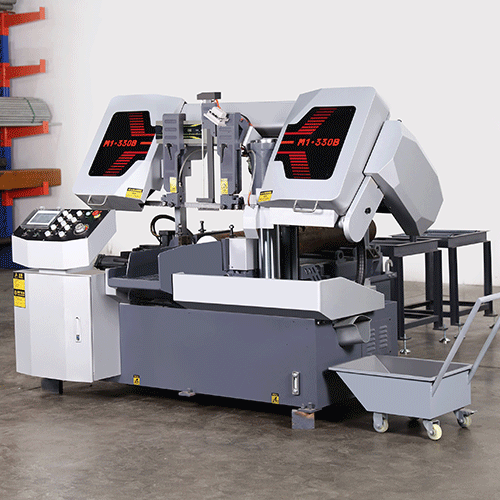

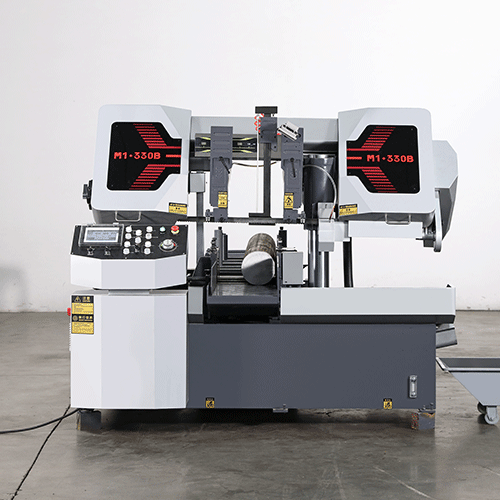

Smart high-speed metal band saw bed M 1+330B

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

No

project Main parameters / specifications remarks

1

Saw cut specifications Single   saw cut Maximum of ø330 mm   W 330× H330 mm

2

  Single   saw cut

Minimum of ø20 mm W 20× H8 mm



3

  Into a   bundle of saw cut Maximum of W300 H160 mm

4

  Into a   bundle of saw cut Minimum W160 H20 mm

5

Saw bar

specifications

4115*34*1.1 mm

6

Saw line speed 15~100 m/min

frequency control

7

feed rate Hydraulic stepless speed regulation Intelligent control

8

Power of

main motor

4 k W



9

final

transmission

Turbine transmission

Saw bed special

10

Hydraulic

motor power

0.75 k W



11

Cooling the   motor power

90 W

Product Details

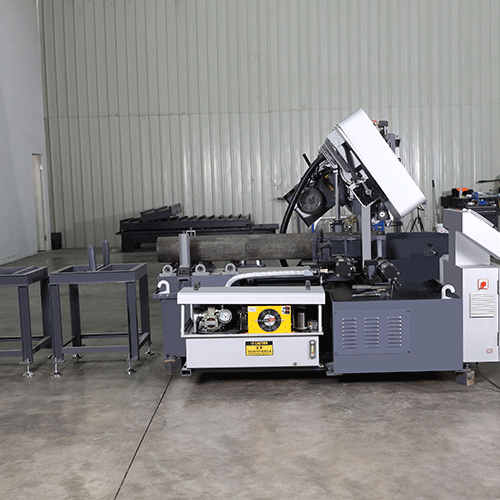

This machine tool is a double circular column structure, is a double metal band saw blade saw metal material equipment, using PLC programmed electrical control system, and added an innovative intelligent saw system, according to the selected materials, the system   can automatically adjust the saw speed, saw line speed and other saw    parameters. The working action of the machine is operated through the PLC display, and can be switched between automatic control and manual control through the display. The workpiece of the machine tool uses hydraulic cylinder feeding, high precision magnetic ruler positioning, has the advantage of high feeding accuracy.

It has the advantages of compact structure, beautiful and generous,  fast saw cutting speed, high precision, narrow saw seam, small noise and so on. It is a new high efficiency and energy saving product to replace disc saw and bow saw bed. Widely used in mechanical and electrical, metallurgy, automobile, bridge, ship and other industries to cut a variety of black, non-ferrous metal materials, especially suitable for the automatic saw of long profiles.



Mechanical properties of equipment

1.Automatic cleaning device: automatic cleaning;hydraulic spiralautomatic discharge Machine, timely eliminate the sawdust on the machine tool.

2.Sawblade guide clamp device:it can effectively improve the deformation stress of saw blade distortion, eliminate saw blade friction noise, and prolong the service life of saw blade.

3.Automaticlubrication device: themain column, round track  guide and other parts are automatically lubricated through the centralized lubrication pump.

4.Workbenchandjaws: the surface of the workbench and the jaws are equipped with wear resistance strip, and easy to replace, effectively  increase the service life of the workbench and jaws.



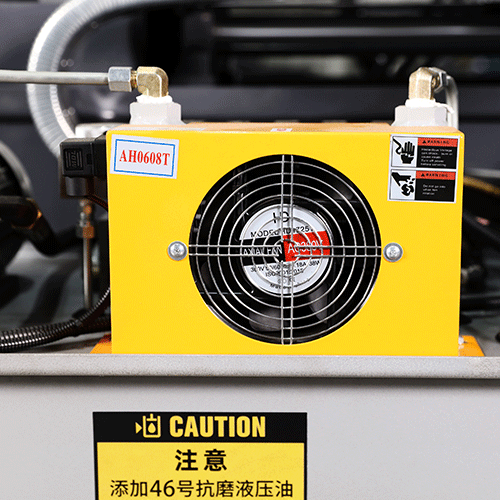

Main hydraulic components

No

Accessories name Accessories model quantity Brand/Origin

1

hoist cylinder Ø90x 350 1

CHINA

2

Tighten the cylinder Ø70x  340 1

CHINA

3

Feed oil cylinder Ø63x 500 1

CHINA

4

electromagnetic   valve 02-3C 2-DC  24V 5

CHINA

5

electromagnetic   valve 02-2B 2-DC  24V 1

CHINA

6

Oil pump electric unit 0.75k w 1

CHINA

Oil pump electric unit VA1-20F -A 3 1

CHINA

7

speed control valve FVS -T 01-C-60-N 1

CHINA

8 worm-gear case BX 330 1

CHINA

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

 Main electrical components

NO

Accessories name Accessories model quantity Brand/Origin

1

control

transformer

BK -300VA 1

CHINA

2

programmable control

unit

XD 5-48T -E 1

CHINA

3

AC contactor CJX 2-1210 2

CHINA

4

frequency transform er 4kw 1

CHINA

5

midget relay JZX -22F   ( D)/2Z

CHINA

6

thermal relay JR 1-09-10A 1

CHINA

7

thermal relay JR 1-09-5A 1

CHINA

8

circuit   breaker DZ47-63 C3 1

CHINA

9

circuit   breaker DZ 47-63 C20 1

CHINA

10

circuit   breaker DZ47-63 C6 1

CHINA

11

touch  screen TGA 63-MT  10“ 1

CHINA

12

stepper motor 850 1

CHINA

13

grating ruler 5U5V600MM 1

CHINA

14

main   motor YE 2-112M-4 1

CHINA
