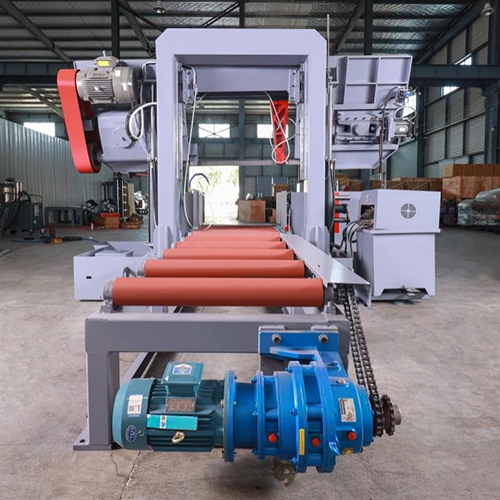

Gantry Horizontal Straight Cutting Bandsaws H1-65/80S

Email: contact@antsmachine.com
Tel: +86-19534031668

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H1-65/80S
Cutting capacity 0° (flat) (length x width) ●650mm     ▄ 800×650mm
Cutting speed infinitely variable 25-60 m/min
Tool feed speed adjustment method Hydraulic stepless speed control
Clamping method Hydraulic clamping of double vise
Band saw blade specifications 1.6*54*6900mm
Band saw blade tensioning Hydraulic tensioning
Main motor power 7.5kw-6P
Hydraulic motor power 1.5kw
Cooling motor power 0.09KW
Machine input power voltage A.C380V, 50HZ
Hydraulic tank capacity 110L
Cooling tank capacity 100L
Product Features
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;

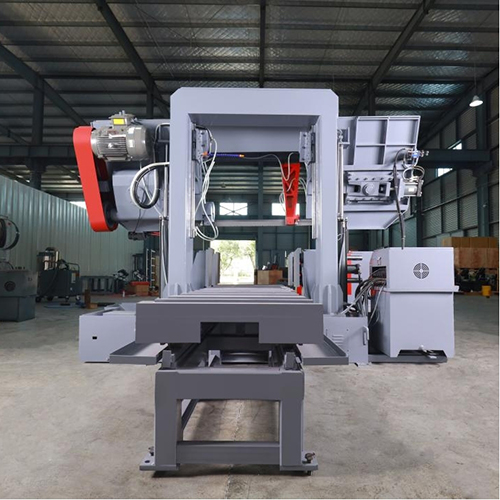

Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table。
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.

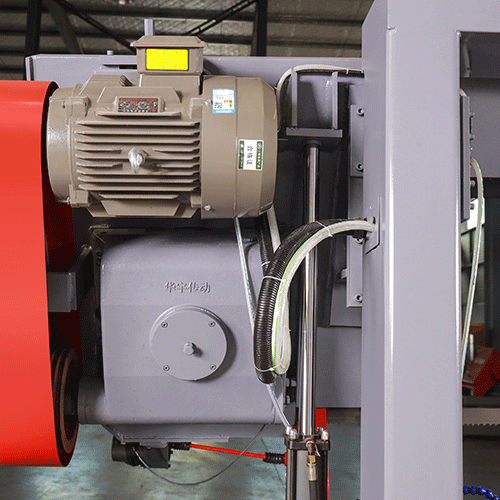

The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance.
This machine consists of the main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw blade hydraulic tension and broken belt protection device
Cooling system
Hydraulic system
Electrical system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DASU
2 Hydraulic pump motor LIANXING
3 Water pump motor XINZHI
4 The electromagnetic valve LEYU
5 Speed control valve CHONGYING
6 Transformer TIANZHENG
7 AC contactor CHINT
8 Thermal overload relay CHINT
9 Contact relay CHINT
10 Miniature circuit breaker CHINT
11 Switch pushbutton CHINT
12 Linear guide SANHUAN
13 Lifting Cylinder FEIYU
14 Clamping Cylinder FEIYU
15 Feed Cylinder FEIYU
16 Reducer  SANLIAN
17 Bearing SITONG

Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Blade cleaning brush.
Working light
Saw frame height selector gauge
One set of tools with tool box
1.5M power roller table
Hydraulic blade tension
Operating tools
Operator manual

Optional Parts and Optional Equipment

NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
3 Spiral chip conveyor H1-65/80S Remove the cutting chips
4 Tool setting light H1-65/80S Lighting use
5 One piece of bi-metal saw blade
