Multi-head vertical saws: the all-rounder for segmental cutting of steel sheet blanks
In the field of metal processing, efficient and precise cutting operations have always been the core competitiveness pursued by enterprises. ANTISHICNC Sawing Machine, as a leader in the industry, once again leads the trend with technological innovation and proudly presents the G5250-210 Multi-Head Vertical Saw. Designed for segmented cutting operations of steel plate embryo, this machine has become an all-rounder in the market with its excellent performance and comprehensive functions.
G5250-210 multi-head vertical saw, with advanced cutting technology, can easily cope with a variety of complex working conditions. Its multi-head design makes the cutting efficiency increase dramatically, and at the same time ensures the flatness and precision of the cutting surface. Whether it is batch cutting of large steel plates or fine segmentation of small plate embryos, G5250-210 can accomplish it with ease.
It is worth mentioning that this machine is not only powerful, but also multi-purpose. In addition to the segmented cutting of steel preforms, the G5250-210 can also adapt to the cutting needs of a wide range of materials and shapes. This all-round coverage makes it unnecessary for enterprises to worry about multiple cutting operations when purchasing equipment, which greatly saves costs and time.

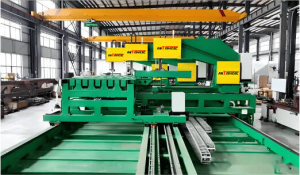

| Picture |  |
||
| Maximum cutting throat height | 500mm | Maximum cutting throat depth | 2100mm |
| Band saw blade specifications (width x thickness) | 54×1.6 mm | Saw blade linear speed | 15-70m/min |
| Feed rate | 0-350mm/min(Hydraulic stepless speed control) | Main motor power | 11kw |
| Feeding motor power | 2.2kw | Hydraulic motor power | 2.2kw |
| Pump motor power | 370w | Power of chip removal motor | 400w |
| Cooling method | Cutting fluid cooling | Saw Belt Tensioning | Hydraulic Tensioning |
| Guide bar movement locking method | Hydraulic | ||

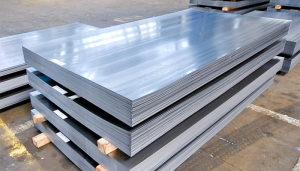

| Cutting finished picture |  |
||
The launch of ANTISHICNC sawing machine G5250-210 multi-head vertical saw is not only a technological innovation in the field of metal processing, but also a comprehensive enhancement of the enterprise’s production efficiency and quality. Choose ANTISHICNC, choose efficiency and precision, let us work together to create a better future!
If you have a need for vertical saws, welcome to contact our Shanghai ANTISHICNC team!
Keywords: Steel plate cutting, Vertical saw, Band saw, Sawing machine
