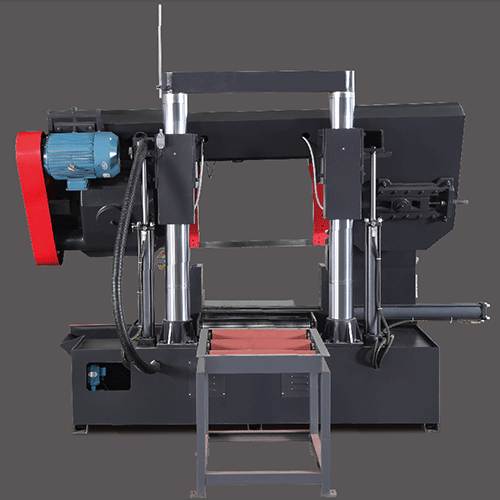

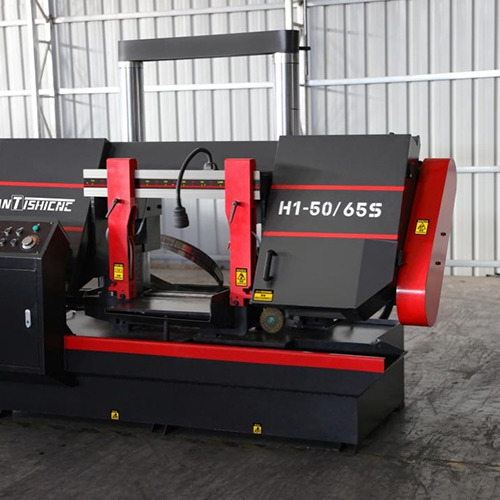

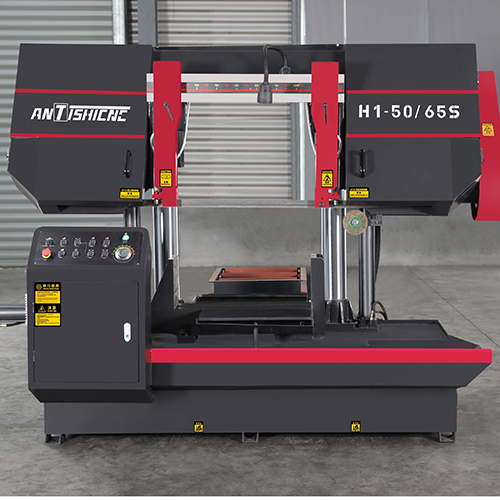

Semi-automatic Control Double Column Horizontal Straight Cutting Band Sawing Machine H1-50/65S

Email: saw@antishicnc.com
Tel: +86-19534031668

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H1-50/65S
Cutting capacity 0° (flat) (length x width) ●500     ■500×650
Cutting speed infinitely variable 24/45/70 m/min
Tool feed speed adjustment method Hydraulic stepless speed control
Clamping method Manual/Hydraulic
Band saw blade specifications 1.3*41*5335mm
Saw blade tension type Manual
Saw blade lubrication method Emulsion spraying
Main motor power 5.5kw
Hydraulic motor power 1.5kw
Cooling motor power 0.09KW
Overall dimensions (length x width x height) 2500mm*1300mm*1930mm
Machine input power voltage A.C380V, 50HZ
Hydraulic tank capacity 80L
Cooling tank capacity 70L
Product Details and Features
This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts Good process equipment, its cutting tool using bimetallic band saw blade, narrow saw kerf, less consumables, small power required, etc., is a kind of energy-saving and efficient cutting equipment.
This machine tool adopts double-column structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.
Features
● Double column structure
● Hydraulic control of sawing feed speed, infinitely adjustable;
● The work-piece is clamped by hydraulic vise;

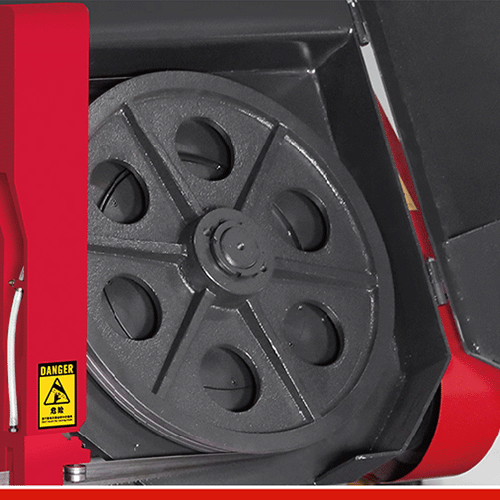

● The band saw blade adopts rolling bearing and hard alloy guide to prolong the life of the saw blade;
●At the end of the cutting cycle, the machine automatically shuts off and the saw blade returns to its adjustable home position.
● The guide seat structure is reasonable & high precision, ensures the correct guidance of the guide block, prolong the saw blade life.
● Automatic and hydraulic tension saw blades can be customized according to requirements;
● Optional cutting speed frequency conversion control.
● Electric feeder (optional).

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DEDONG
2 Hydraulic pump motor YOUQUEN
3 Water pump motor XINZHI
4 The electromagnetic valve SUMMER
5 Speed control valve SUMMER
6 AC contactor CHINT
7 Thermal overload relay CHINT
8 Small Circuit Breaker CHINT
9 Transformer TIANZHENG
10 Contact relay CHINT
11 Switch Button CHINT

Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. Out feed with auxiliary plate table
5. One piece of bi-metal saw blade.
6. One set of tools with tool box
7. Roller table 1M long
8. Hydraulic part clamping
9. Support with roller
10. Coolant system
11. Operating tools
12. Operator manual

Optional Parts and Optional Equipment

NO Spare parts Description Specification Function
1  detachable feeding rack  2 meter Take the load of materials
2 Inverter H-50/65S
3 Pressure reducing valve  Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral Chip Conveyor H-50/65S Remove the cutting chips
5 Saw Belt Hydraulic Tensioning H-50/65S Tension the saw blade hydraulically
6 Laser projector H-50/65S
7 Press-up device H-50/65S (installed on a vice)
