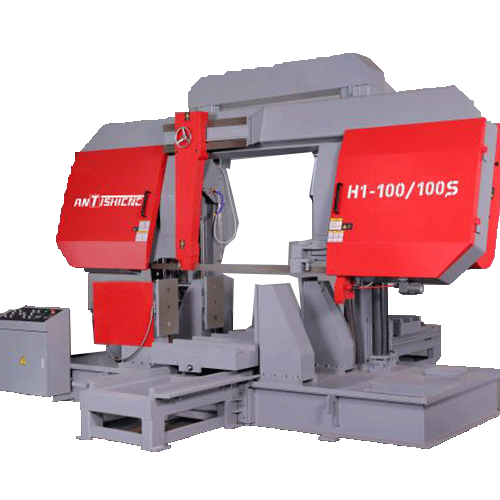

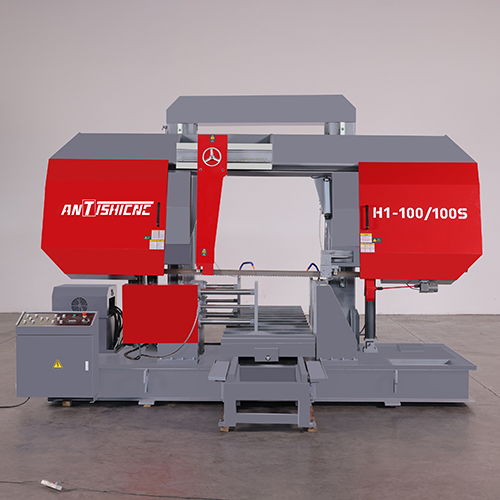

Semi-Automatic Control Gantry Column Horizontal Straight Cutting Metal Band Sawing Machine H1-100/100S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H1-100/100S
Cutting capacity 0° (flat) (length x width) ● 1000mm   □1000×1000mm
Cutting speed infinitely variable 10-80 m/min
Saw blade size 67×1.6×10100mm
Main motor power 11kw-6P
Hydraulic motor power 2.2kw
Coolant motor power 0.12kw
Overall dimensions (length x width x height) 4600x1960x2900mm
Weight(NET WEIGHT) 9790kgs
Product Details
H1-100/100 gantry band sawing machine is one of the series of products scientifically designed by our company by synthesising the advantages of similar products at home and abroad. It features reasonable structure, stable performance, simple and reliable operation. It is suitable for cutting all kinds of ferrous and non-ferrous metals below 1000×1000mm. It is an ideal product with narrow kerf, high efficiency, material saving and energy saving.
Features
1.Adopting square column gantry structure, the surface of square column is equipped with linear guide rail. The structure has good guiding performance, uniform force, high precision movement, good wear resistance and long service life.

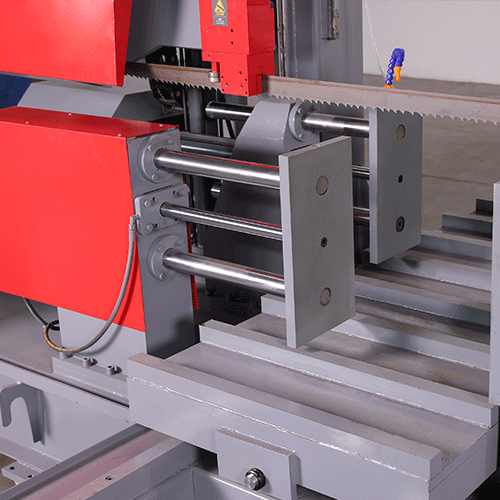

2.Hydraulic clamping with two sets of front and rear vise.
3.Cutting speed is controlled by hydraulic pressure, stable sawing and high precision.
4.Saw blade line speed adopts frequency conversion stepless speed regulation.
5.Saw blade tensioning adopts hydraulic tensioning.
6.The working table adopts flat plate type, which can be moved back and forth by hydraulic cylinder, and is suitable for sawing all kinds of materials.
7.the main structure (such as bed, saw frame, etc.) vibration aging (removal of internal stress process), can effectively eliminate internal stress, increase the surface adhesion, not easy to deformation.
8.Configured with automatic chip clearing device, which can effectively remove the sawdust adhering to the saw blade.
This machine consists of the main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw blade hydraulic tension and broken belt protection device
Cooling system
Hydraulic system

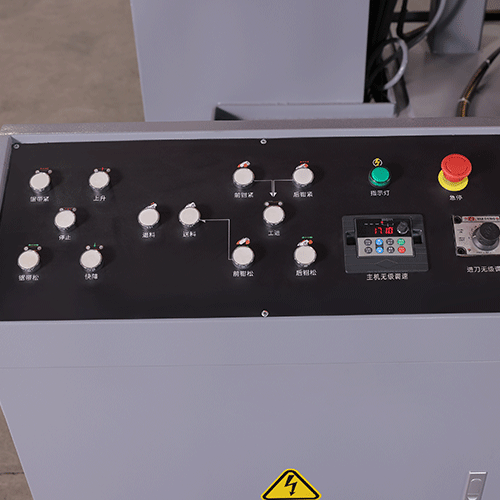

Electrical system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DASU
2 Hydraulic motor WY
3 Button CHINT
4 Contactor CHINT
5 Transformer TIANZHENG
6 Turbine box HUAYU
7 Solenoid valve YU KEN
9 Inverter TIANZHENG
10 Oil tank HANLDA

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Sawing machine
hydraulic station
1.5m electric roller
Operation Manual

Optional Parts and Optional Equipment

NO. Spare parts Description Function
1 Spiral Chip Conveyor Remove the cutting chips
2 2 meters detachable rack Feed
3 Tool setting light Lighting use
4 Pressure reducing valve Adjustable vise pressure (suitable for cutting thin-walled tubes)
