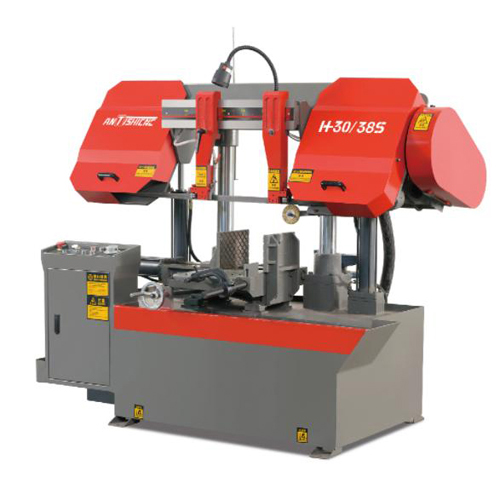

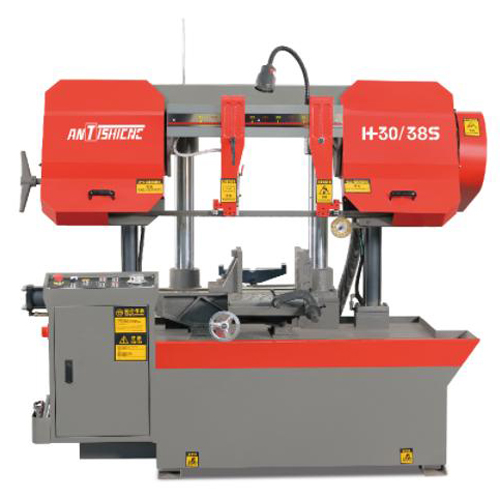

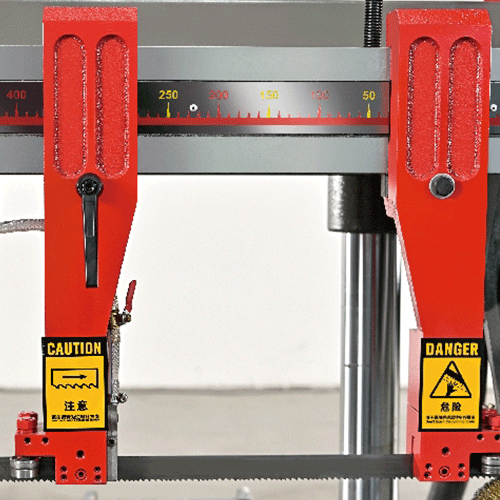

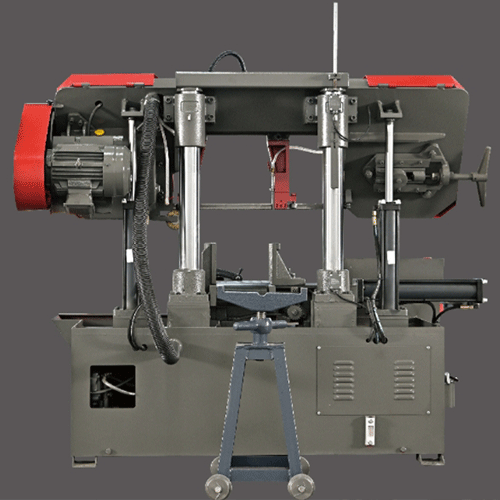

Semi-Automatic Control Horizontal Straight Cutting Metal Band Sawing Machine H-30/38S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H-30/38S
Cutting capacity 0° (flat) (length x width) 330*380mm
Cutting speed 25/49/74 m/min
Saw blade size 27×0.9×3505mm
Main motor power 4kw
Hydraulic motor power 0.55kw
Coolant motor power 40w
Machine diemnsions 1900*1100*1600mm
Weight 770kg
Product Details
This sawing machine is suitable for cutting steel embryo with height ≤ 330mm and width ≤ 600mm. After selecting appropriate parameters and adjusting different speeds, it can cut all kinds of soft and hard ferrous or non-ferrous metal materials, and it is the ideal cutting equipment with high efficiency and energy-saving for large and medium-sized enterprises.
H-33/60S middle and lower double column horizontal band sawing machine is a new generation of band sawing machine designed and developed by our company. Double column guided, reliable performance, beautiful appearance. Column surface are coated with hard chrome, anti-wear, high precision, increasing the service life of the machine tool. Hydraulic lifting, stepless speed regulation, can set their own range, easy to achieve the best sawing conditions. The machine is hydraulically clamped for easy operation. Saw blades are guided by bearings and adjustable tungsten steel blades to ensure sawing accuracy.
Features
●New and fully compliant products that have been rigorously inspected and qualified.
●Surface sandblasting and vibration aging (internal stress removal process) for major structures (e.g. beds, saw frames, etc.) ensures the elimination of internal stresses and increases surface adhesion.
●The whole process of quality control by adopting German technology and management technology.
The main drive worm gear adopts the process of: material removal→rough machining→quenching→finishing→surface quenching→tooth grinding.
●Double column structure (one big and one small), high precision, the surface is chromium-plated treatment is beautiful, wear-resistant, rust-resistant.
●Clamping adopts the combination of hydraulic pressure and mobile phone, easy and labour-saving.
●The main cutting speed of the saw belt adopts five-level speed regulation by belt, which is easy to operate, reliable to use and conducive to prolonging the life of the saw blade.
●The main motor adopts the product of large speed, with high transmission efficiency.
The main hydraulic components and seals are made of hydraulic components from famous domestic manufacturers, which have long service life, good reliability and long trouble-free time.
The main electric appliances use the original devices of Chint Group, with long service life, good reliability and long trouble-free time.
The saw belt is equipped with flexible steel brush, which can fully remove the iron chips from the teeth of the saw belt and prolong the service life of the saw belt.
●Sawing band 34×1.1 can enhance the sawing ability of alloy material with high hardness, greatly reduce the phenomenon of band breakage in sawing, and improve the quality of use.
●Equipped with electric feed frame and passive feed frame, the length and quantity of feed frame can be customised. (Note: electric feed frame and passive feed frame are non-standard products)

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor CHINA
2 Hydraulic motor CHINA
3 Solenoid valve CHINA
4 Electrical components CHINA
5 Breaker CHINA
6 AC contactor CHINA
7 Thermal relay CHINA
8 Small relay CHINA
9 Transformer CHINA
10 Worm gear box CHINA

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. Out feed with auxiliary plate table
5. One piece of bi-metal saw blade.
6. One set of tools with tool box
7. Roller table 1M long
8. Hydraulic part clamping
9. Support with roller
10. Coolant system
11. Operating tools
12. Operator manual

Optional Parts and Optional Equipment

NO. Spare parts Description Specification Function
1 Detachable feeding rack 2 meter Take the load of materials
2 Inverter H-30/38S
3 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral Chip Conveyor H-30/38S Remove the cutting chips
5 Saw Belt Hydraulic Tensioning H-30/38S Tension the saw blade hydraulically
6 Laser projector H-30/38S
7 Press-up device H-30/38S Press-up device
