Product Details

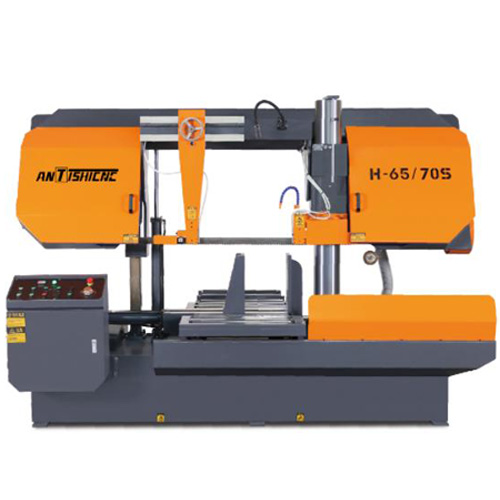

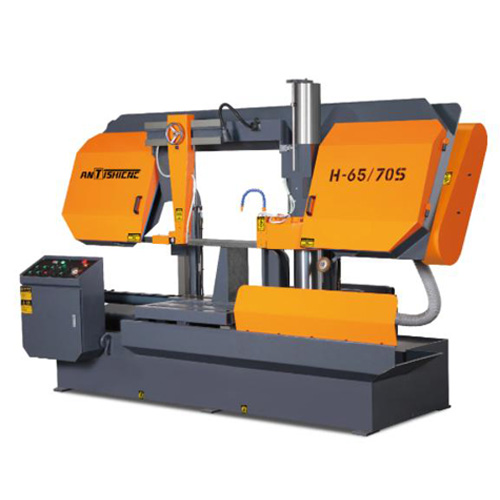

This machine tool is mainly used for cutting metal profiles, tubes, round and square materials such as steel embryo, after selecting the appropriate process parameters, can cut a variety of ferrous or non-ferrous metal materials, it is used in steel, mold mold embryo, machinery, metallurgy, mining, petroleum, automotive, shipbuilding, machine tools …… and other large and medium-sized enterprises and institutions, is the choice of sawing large embryo parts The cutting tool adopts bimetallic band saw blade, with the advantages of narrow saw kerf, less consumables, small power required, etc. It is a kind of high-efficiency cutting equipment with the advantages of material saving and energy saving.

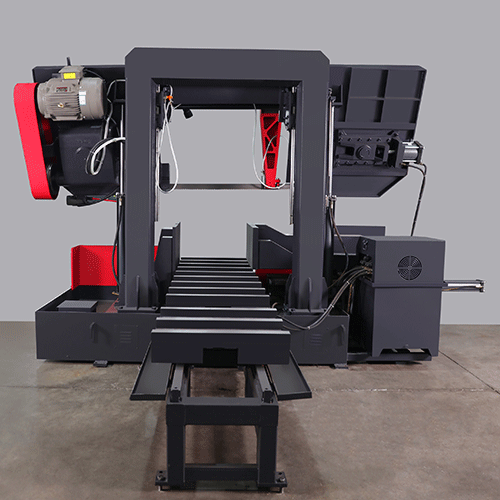

This machine tool adopts the horizontal structure of main and vice-column to ensure the reliability, stability and advancement of the structure, and the function of each part has enough margin, and also ensures the high quality sawing precision.

Hydraulic system consists of oil storage tank, hydraulic motor pump, relief valve, electromagnetic reversing valve, speed control valve, pressure gauge, filter, lifting cylinder, clamping cylinder and conveying pipeline and other components of the hydraulic. The hydraulic circuit is composed of lifting cylinder, clamping cylinder and conveying pipeline. The electric system controls the electromagnetic reversing valve to complete the lifting and lowering of the saw frame and the clamping of the workpiece: through the control of the speed control valve can realize the step-less speed regulation of the feeding speed, to achieve the sawing needs of the workpiece made of different materials.

The electrical system consists of travel switches, terminal boards, distribution boxes, electrical operation boxes, operation panels, electrical components and cables, etc. The electrical circuit is used to control the operation of the saw wheel, the lifting and lowering of the saw frame, and the clamping of the workpiece, so that the sawing process can be completed in accordance with certain operations.

Features

Main and vice-column

Hydraulic system

The work-piece is clamped by hydraulic vise

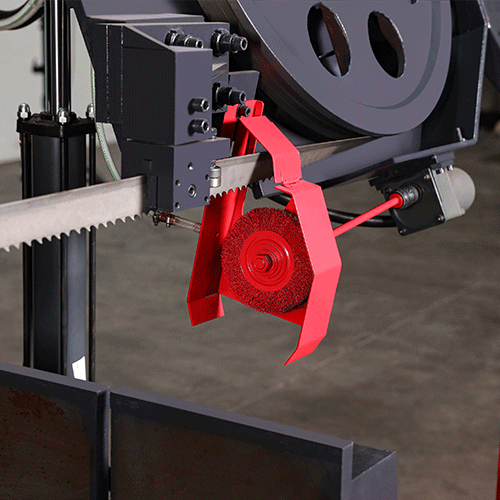

The band saw blade adopts rolling bearing and hard alloy guide to prolong the life of the saw

blade

At the end of the cutting cycle, the machine automatically shuts off and the saw blade returns to

its adjustable home position.

The guide seat structure is reasonable & high precision, ensures the correct guidance of the

guide block, prolong the saw blade life.

Automatic and hydraulic tension saw blades can be customized according to requirements;

Optional cutting speed frequency conversion control.

Electric feeder (optional)
