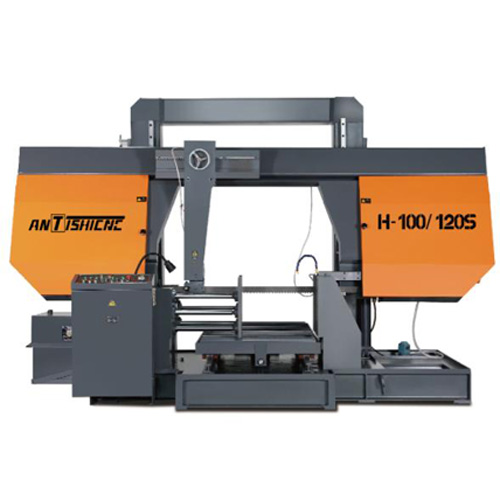

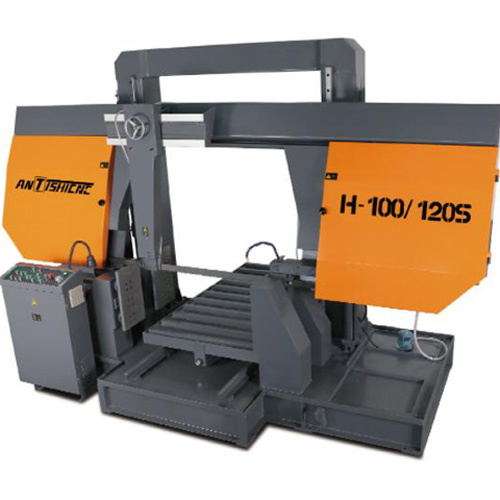

Semi-Automatic Gantry Horizontal Straight Cutting Band Sawing Machine H-100/120S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications H-100/120S
Cutting capacity 1000*1200mm
Cutting speed infinitely variable 10-80 m/min
Band saw blade specifications 1.6*67*10200mm
Main motor power 11kw-6P
Hydraulic motor power 2.2kw
Cooling motor power 120W
Machine dimensions 4600*1850*3000mm
Weight 8300kgs
Roller table size 2030*1130mm
Single feeding length 1300mm
Min. Clamping distance 550mm
Distance between front anf rearjaws 174 140mm

Product Details

The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.

It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.

Product Features

Hydraulically controlled sawing feed and vise clamping;

High-precision linear guide rail guide, high sawing precision;

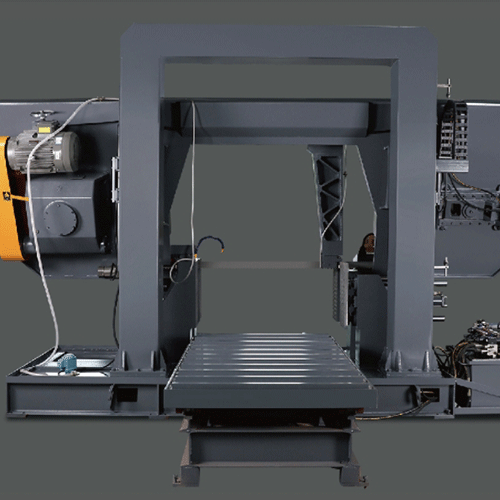

Gantry type structure, good rigidity, reliable and stable structure;

Double oil cylinder control, stable feeding;

Motorized feeding roller table and receiving roller table

Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.

The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.

The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance

This machine consists of the main components

Base

Main drive system

Clamping device

Saw frame

Guiding device

Saw blade hydraulic tension and broken belt protection device

Cooling system

Hydraulic system

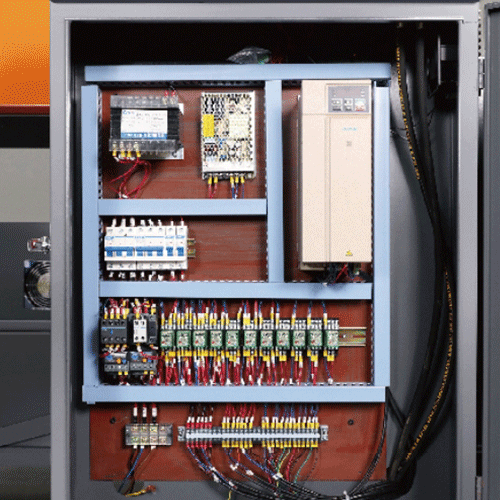

Electrical system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DASU
2 Hydraulic pump motor LIANXING
3 Water pump motor XINZHI
4 The electromagnetic valve LEYUI
5 Speed control valve CHONGYING
6 Transformer TIANZHENG
7 AC contactor CHINT
8 Thermal overload relay CHINT
9 Contact relay CHINT
10 Miniature circuit breaker CHINT
11 Switch pushbutton CHINT
12 Linear guide SANHUAN
13 Lifting Cylinder FEIYU
14 Clamping Cylinder FEIYU
15 Feed Cylinder FEIYU
16 Reducer  SANLIAN
17 Bearing SITONG

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Blade cleaning brush.
Working light
Saw frame height selector gauge
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 2M long
Laser projector
Hydraulic blade tension
Inverter blade speed
Sensor for jamming, slipping and breaking of the band saw blade 1 set

Optional Parts and Optional Equipment

NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
3 Spiral chip conveyor H-100/120S Remove the cutting chips
4 Tool setting light
