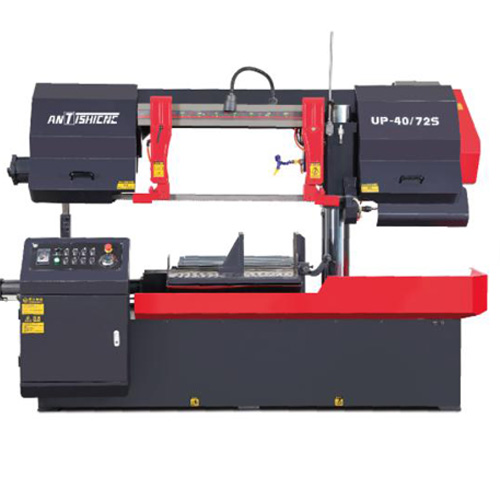

Semi-Automatic Gantry Horizontal Straight Cutting Band Sawing Machine UP-40/72S

Email: contact@antsmachine.com
Tel: +86-19534031668

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications UP–40/72S
Cutting capacity 0° (flat) (length x width) 400*720mm
Cutting speed infinitely variable 10-70 m/min
Band saw blade specifications 1.3*41*5385mm
Main motor power 5.5kw-6P
Hydraulic motor power 1.5kw
Cooling motor power 0.09KW
Vise clamp size 220*220mm
Table height 760mm
Roller table size 796*600*750mm
Weight 1740kg
Machine dimensions 2900*1360*1800mm
Machine diemnsions(Saw drame raised) 2900*1360*1950mm

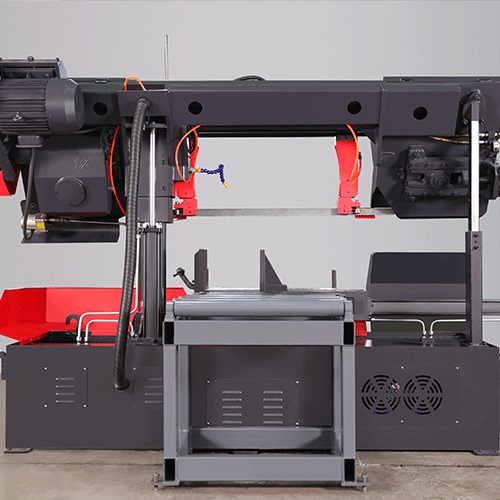

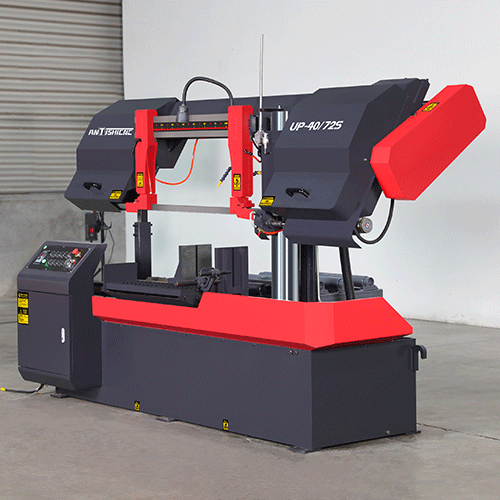

Product Details
The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Product Features
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;
Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table。
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.
The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance.
This machine consists of the main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw blade hydraulic tension and broken belt protection device
Cooling system
Hydraulic system

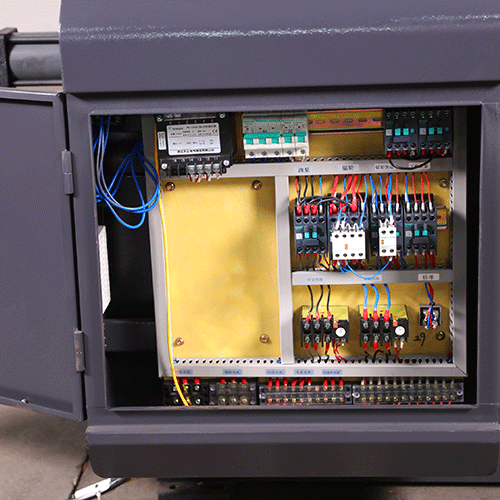

Electrical system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor China
2 Hydraulic pump motor China
3 Water pump motor China
4 The electromagnetic valve China
5 Speed control valve China
6 Transformer China
7 AC contactor China
8 Thermal overload relay China
9 Contact relay China
10 Miniature circuit breaker China
11 Switch pushbutton China
12 Linear guide China
13 Lifting cylinder China
14 Clamping cylinder China
15 Feed cylinder China
16 Reducer  China
17 Bearing China

Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Blade cleaning brush.
Working light
Saw frame height selector gauge
One set of tools with tool box
1.5M power roller table
Hydraulic blade tension
Operating tools
Operator manual

Optional Parts and Optional Equipment

NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
3 Spiral chip conveyor UP-4072S Remove the cutting chips
4 Tool setting light UP-4072S Lighting use
5 One piece of bi-metal saw blade



Youtube Channel : Antishicnc Machine
