| Technical Specifications | H1-70/90S |
| Cutting capacity 0° (flat) (length x width) | ●700mm ▄ 700×900mm |
| Cutting speed | 10-63 m/min |
| Adjustment mode of feed speed | Hydraulic |
| Saw blade tension type | Hydraulic |
| Saw blade size | 1.6×54×7970mm |
| Main motor power | 11kw-6P |
| Hydraulic motor power | 2.2kw |
| Coolant motor power | 120w |
| Machine input supply voltage | A.C380V、50HZ |
| Weight(NET WEIGHT) | 5505kgs |
| Hydraulic oil tank | 100L |
| Water tank | 100L |
| Weight of hydraulic feeding platform | 980kg |
| Machine dimensions | 3750x1970x2270mm |
Product Details

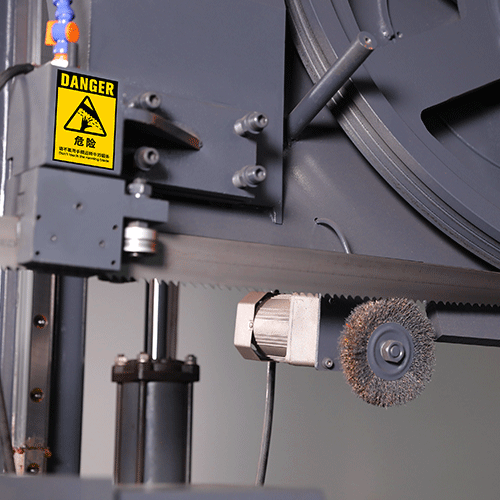

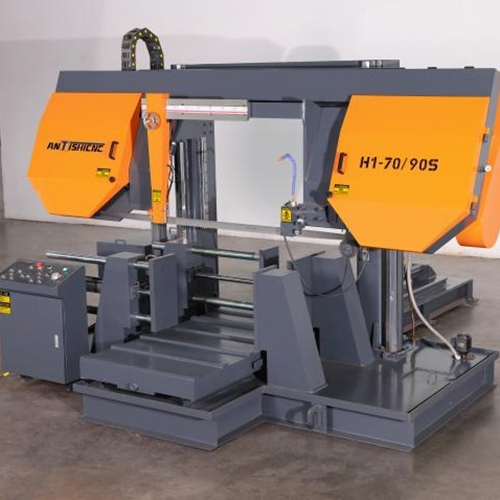

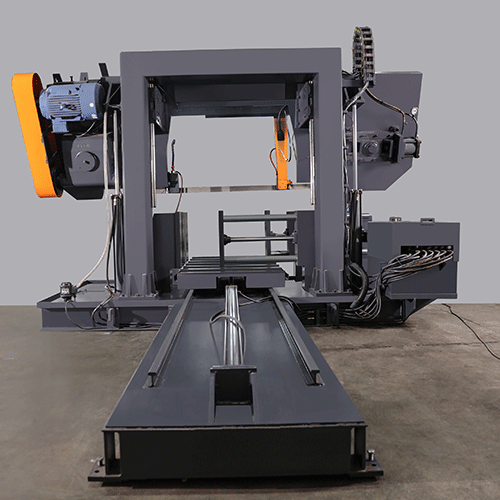

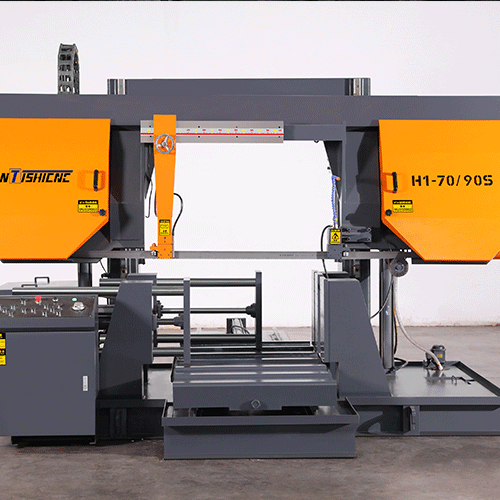

The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Product Features
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;
Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.
The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance
This machine consists of the main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw blade hydraulic tension and broken belt protection device
Cooling system
Hydraulic system
Electrical system
Main Parts for the saw machine
| NO. | Part Description | Brand/Origin |
| 1 | Main motor | HANSHENG |
| 2 | Hydraulic motor | BOHAI |
| 3 | Water pump | HONGHUI |
| 4 | solenoid valve | YOUKUN |
| 5 | Speed control valve | HANDA |
| 6 | Frequency inverter | TAILI |
| 7 | AC contactor | TIANZHENG |
| 8 | Thermal Overload Relay | TIANZHENG |
| 9 | Contact relay | TIANZHENG |
| 10 | Miniature Circuit Breaker | TIANZHENG |
| 11 | Switch Button | TIANZHENG |
| 12 | Lift Rail | SANHUAN |
| 13 | Lifting Cylinder | BIXIN |
| 14 | Feeding cylinder | BIXIN |
| 15 | Turbine box | HUAYU |
| 16 | Clamping cylinder | BIXIN |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Standard Equipment of the saw machine
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Function |
| 1 | Spiral Chip Conveyor | Remove the cutting chips |
| 2 | 2 meters detachable rack | Feed |
| 3 | Tool setting light | Lighting use |
| 4 | Pressure reducing valve | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
