Semi-Automatic Rotary Cutting Horizontal Metal Band Sawing Machine H1-33N

Email: saw@antishicnc.com
Tel: +86-19534031668

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

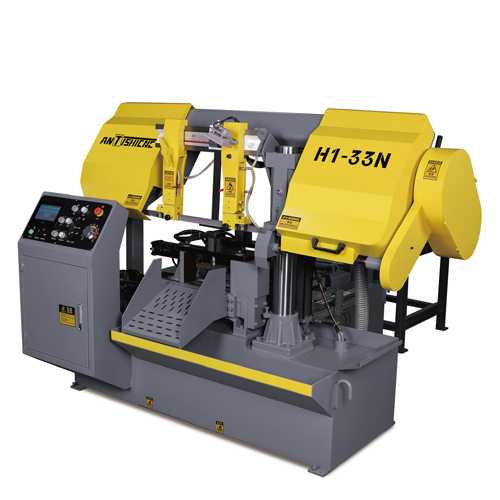

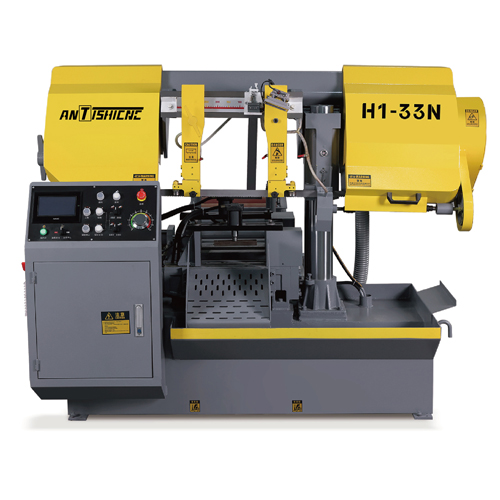

Technical Specifications H1-33N
Cutting capacity 0° (flat) (length x width) 330*330mm
Cutting speed 20/35/45/65/80 m/min
Saw blade size 34×1.1×4115mm
Main motor power 4kw
Hydraulic motor power 0.75kw
Coolant motor power 60w
Weight(NET WEIGHT) 1600 kgs
Outside dimension 2200×2050×1450 mm
Product Details
1.Machine feet:
It is made up of welding pieces.Inner of the machine have the hydraulic and cooling system.The machine feet meet the foundation and bear the weight of the machine itself and work piece.
2.Turn table:
It is made up of base ,turn table,and turn axle,turn axle and base with rotating scale fixed on the machine body,and there is a work table on the turn table.
3.Work table:
It must be keep smooth and in level.The workpiece must be operated on the work table.This is main part to guarantee the precision of the workpiece.
4.Clamping vice:

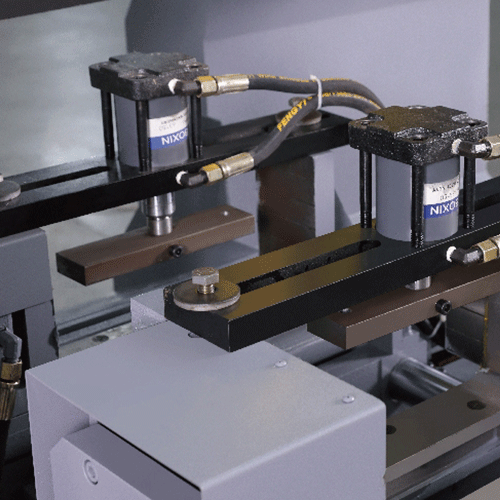

There are feeding roller and board for feeding material and receiving workpiece.The clamping vise is settled on the work table.The fixed vise is on the right of the table,and the flexiblevise is controlled by the cylinder,in order to keep the workpiece tightly on the work table.
5.Scissors point:
This is the device connects the saw frame and work table,as the scissors type band saw pivot,it is high-precision cutting needs.
6.Saw frame:
It is made up of welding plate.used to install and connect the main driving,tension the saw blade and guidance of the saw blade.
7.The main transmission：
The main transmission adopt worm wheel driving.It is composed of main motor,worm wheel and saw wheel. It is mainly used for transmit the torsion,and drive the saw blade.So that it can realize the cutting process.The cutting speed can be adjusted into three steps by setting the belt on the pulley. The different speed can meet the various requirments of the workpiece.
8.The tension of the blade:
It is compused of the driven pulley,tension sets,lead screw and slider block.it can adjust the tension of the saw blade by using wrench to turn the leas screw and move the slider block.
9.The guidance of the saw blade:
This device is composed of beam,guiding arm,guiding head ,guiding block ,alloy block and alloy piece.it make the saw blade keep vertical with the work table by turn the bear of guiding head.the alloy block and alloy piece are closed to the back and side of the saw blade.This set can reduce the friction of the saw blade.the alloy block is supported by the spring,it can adjust the resistance of cutting.The guiding arm is locking on the beam.It can be moved in left and right to accomodated to the various width of the workpiece.The most short distance between the two guiding head that suitable to the width of workpiece can make the saw blade full of rigidity,and suitable flexiable, which can prolong the service life of the saw blade.
10.Cooling system:
It is composed of three phase electric pump,water storage tank and delivery line. This device assure the cooling liquid when the band saw is sawing.It can enhance the precision of the sawing and prolong the service life of the saw blade.
11.Hydraulic system:
It is composed of oil storage tank,motor,gear pump,relief valve,magnetic valve,throttle valve,pressure gage,filter,up and down cylinder,clamping cylinder and delivery line.(refer to the hydraulic drawing)

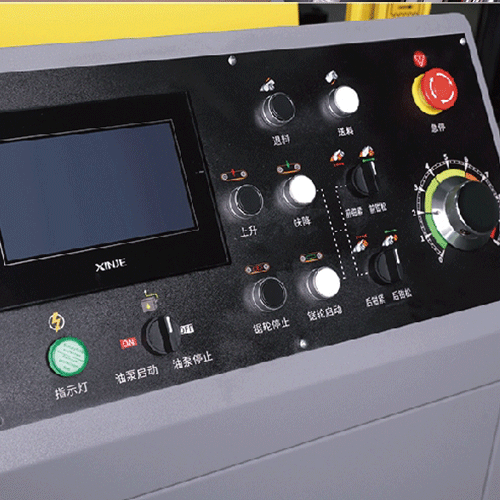

12.Electrical system:
It is composed of main motor,oil motor,cooling motor,position switches,wiring board,branch box,operation box,operation panel,electrical element,and cable,etc.(refer to the electrical drawing)

Main Parts for the saw machine

NO. Name Origin
1 Main motor CHINA
2 Hydraulic motor CHINA
3 Water pump motor CHINA
4 Solenoid CHINA
5 Transformer CHINA
6 Alternating current contactor CHINA
7 Thermal Overload Relay CHINA
8 Contact Relay CHINA
9 Miniature Circuit Breaker CHINA
10 Switch Push buttons CHINA

Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine

Hydraulic part clamping

Bimetallic band saw blade

Support with roller

Coolant system

Work lamp

Operating tools

Operator manual

Optional Parts and Optional Equipment
NO. Spare parts Description Specification Function
1 Detachable rack 2 meter Take the load of materials
2 Press-up device H1-33N Installed on a vice
3 Pressure reducing valve Clamping force regulation at Hydraulic station Adjustable vise pressure (suitable for cutting thin-walled tubes)
4 Spiral chip conveyor H1-33N Remove the cutting chips
5 Saw belt hydraulic tensioning H1-33N Tension the saw blade hydraulically
6 Inverter H1-33N
