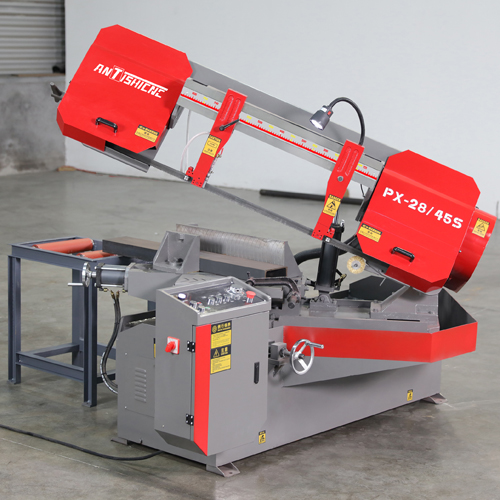

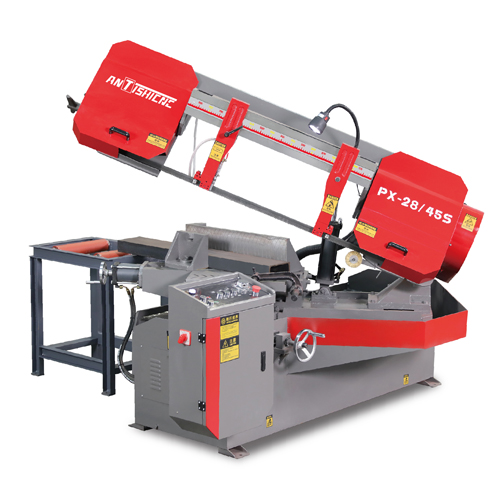

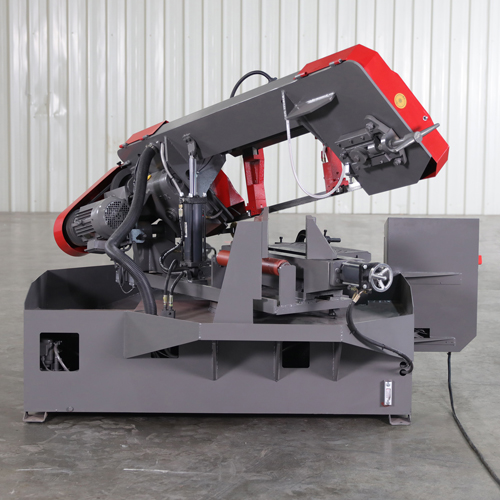

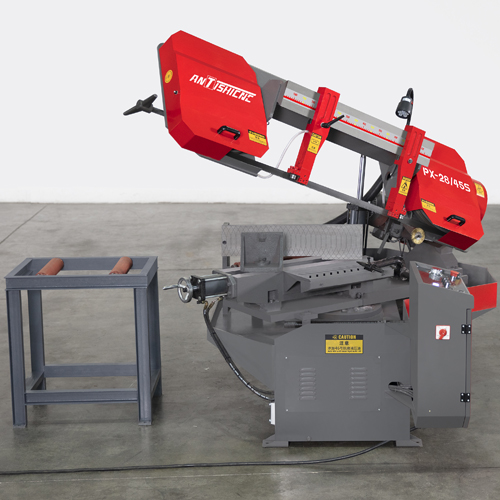

Technical Specifications | PX-28/45S |
Cutting capacity 0° (flat) (length x width) | 0°:280x470mm
30°:250x370mm 45°:230x280mm 60°:210x160mm |
Feed mode | Stepless speed regulation |
Cutting speed infinitely variable | 25/45/72 m/min |
Total power of sawing machine | 3.79kw |
Saw blade size | 34×1.1×4115 mm |
Main motor power | 3kw |
Number of main motor | 4 |
Cooling motor power | 40w |
Table height | 730 mm |
Hydraulic motor power | 0.75kw |
Total weight | 1060KG |
Size (LxWxH) | 2200x1460x1800mm |
Beam length, width and thickness | 960x125x45mm |
Guide arm size | 392x90x60mm |
Saw wheel size | Ø410mm |
Pneumatic lever size | 420-300N |
Wire brush diameter (ODxID) | Ø80×8 |
Bearing specification | 6200Z |
Fuel tank capacity | 25L |
Water tank capacity | 20L |
Lifting cylinder specification | 80x190mm |
Clamping cylinder specification | 90x50mm |
Feed Rack size (LxWxH) | 600x500x720mm |
Specification of alloy sheet | 50x25x11mm
50x16x9mm |
Power supply requirement | 380V |
Distribution box size (HxWxT) | 650x435x230mm |
Size of electronic board in distribution box | 330x400mm |
Saw operation | Manual |
Saw blade tensioning method | Manual |
Chip clearing method | Passive wire brush |
Feeding method | Manual |
Main drive structure | Turbine turbo reducer |
Work light power | 24V |
Column structure | Scissor type |
Work clamping method | Manual+Hydraulic |
This machine tool is mainly used for sawing large mold materials, forgings, profiles, empty tubes and other materials, and can be
adapt to the sawing processing of various ferrous metal materials. It is characterized by high cutting efficiency, energy saving, narrow saw kerf, energy saving and material saving, and simple operation.
This machine tool adopts scissor type structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.
Main components
Base
Main drive system
Clamping device
Feeding device
Saw frame
Guiding device
Saw frame connection device
Saw blade tension
Cooling system and chip sweeper
Hydraulic system
Electrical control system
Main Parts for the saw machine
NO. | Part Description | Brand/Origin |
1 | Main motor | SHUOLI |
2 | Hydraulic motor | CHUAN YUE |
3 | Turbine box | LIZHI |
4 | Belt specification | B1180Li |
5 | Solenoid Valve | YU KEN |
6 | Solenoid Model | DSG-01-2B2-DC24-N1-50
DSG-01-3C2-DC24-N1-50 |
7 | Electrical Component | TIANZHENG |
Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Standard Equipment of the saw machine
Blade cleaning brush.
Working light
Manual feed roller
Length stopper
One piece of bi-metal saw blade
One set of tools with tool box
Optional Parts and Optional Equipment
Bundle cutting
Roller stock table 2M long
Inverter
