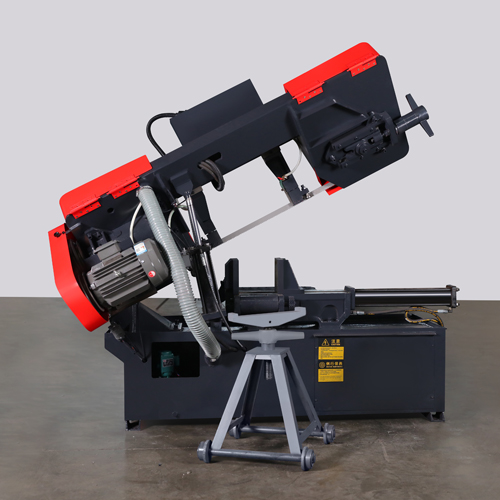

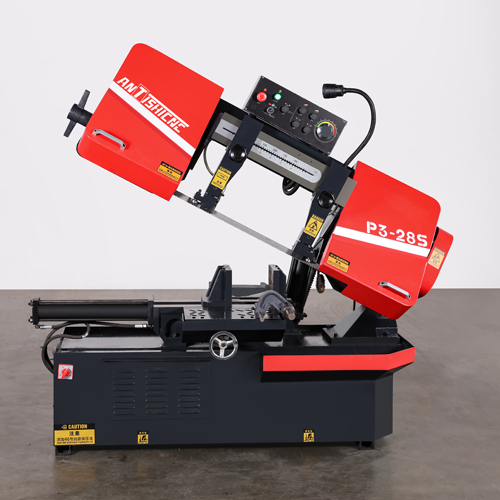

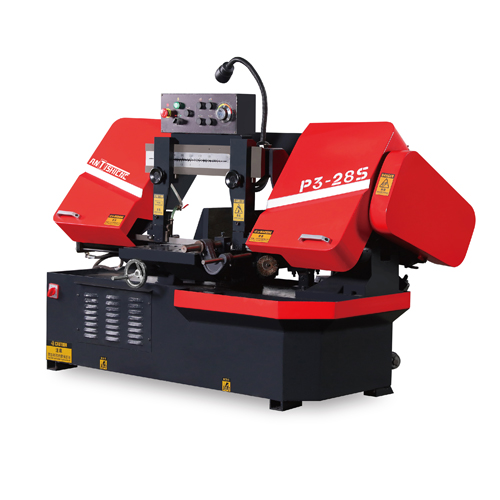

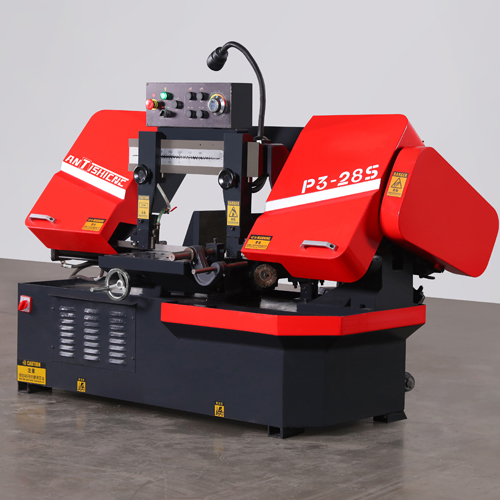

Semi-Automatic Scissor-type Horizontal Straight Cutting Metal Band Sawing Machine P3-28S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications P3-28S
Cutting capacity 0° (flat) (length x width) 280mm 240*330mm
Cutting speed 27/46/70 m/min
Saw blade size 27*0.9*3505mm
Main motor power 2.2kw-4P
Hydraulic motor power 0.55kw
Coolant motor power 42w
Hydraulic oil tank 35L
Hydraulic system pressure 3.0Mpa
Upper and lower sawing vertical accuracy <0.1/100mm
Cooling system Coolant circulation
Dimension about 1820*1000*1230mm
Machine weight about 721KG
Feed rack size 450*450*560mm

This machine tool is mainly used for sawing of small and medium-sized bars, tubes and plates, and can be adapted to sawing of various ferrous materials. It has the characteristics of high cutting efficiency, energy saving, narrow kerf, energy saving and material saving, and simple operation.
The machine tool adopts scissor structure to ensure the reliability, stability and advancement of the structure, and the functions of each part have margins, and at the same time, it also ensures high-quality sawing accuracy.

Main components
Base
Main drive system
Clamping device
Saw frame
Guiding device
Saw frame connection device
Saw blade tension
Cooling system and chip sweeper
Hydraulic system
Electrical control system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DEDONG
2 Hydraulic motor SANYOU
3 Water Pump BOHAO
4 Solenoid valve YUKEN
5 Contactor CHINT
6 Bearing HRB
7 Thermal overload relay CHINT
8 Hydraulic cylinder HBJX
9 Transformer CHINT
10 Turbine box (original) HBJX

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine
Blade cleaning  brush.
Working light
Manual feed roller
Length stopper
Roller rack
One piece of bi-metal saw blade
One set of tools with tool box
Fast approaching device

Optional Parts and Optional Equipment
Bundle cutting
Roller stock table 2M long
Inverter
