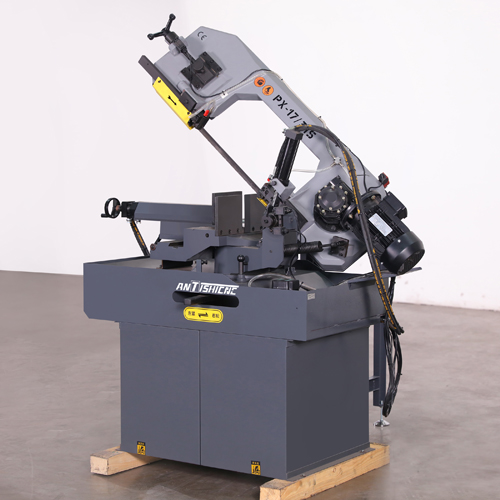

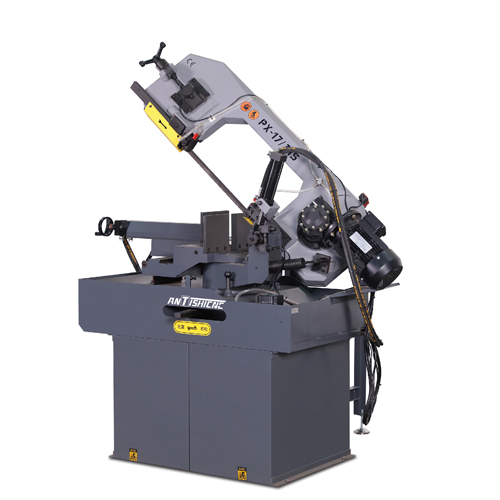

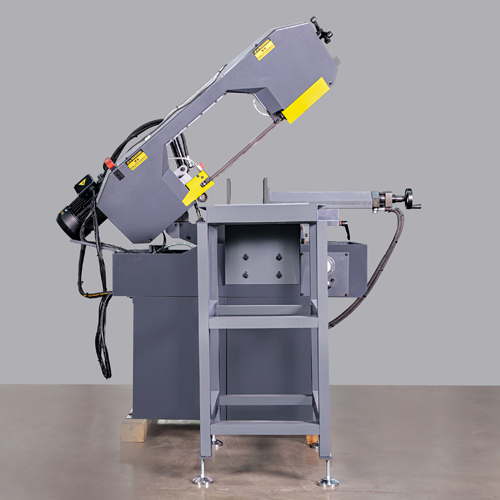

Semi-Automatic Scissor-Type Rotary Cutting Metal Band Sawing Machine PX-17/31S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications PX-17/31S
Cutting capacity (length x width) 0° :Ø230 170x315mm

60°:Ø130  150x130mm

±45°:Ø200  210x170mm

Cutting speed infinitely variable 37/73 m/min
Total power 1.345/1.695kw
Saw blade size 27×0.9x2825mm
Main motor power 0.75kw/1.1kw-4P/8P
Cooling motor power 45w
Hydraulic motor power 0.55kw
Working table height 980mm
Total weight 424KG
Size (LxWxH) 1650x700x1930mm
Front and rear jaw size (WxH) 190x140mm
Saw wheel size Ø320mm
Wire brush diameter (ODxID) 50mm
Bearing specification 6207Z (saw wheel)
Oil tank capacity 10L
Water tank capacity 11L
Power supply requirement 380V
Distribution box size (HxWxT) 650x435x230mm
Overall size of electronic board in distribution box 330x400mm
Saw operation Semi-automatic
Saw blade tensioning method Manual
Chip clearing method Passive wire brush
Feeding method Manual
Main drive structure Turbine turbo reducer
Column structure Scissor type
Work clamping method Manual+Hydraulic

This machine tool is mainly used for sawing large mold materials, forgings, profiles, empty tubes and other materials, and can be
adapt to the sawing processing of various ferrous metal materials. It is characterized by high cutting efficiency, energy saving, narrow saw kerf, energy saving and material saving, and simple operation.
This machine tool adopts scissor type structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.

Main components
Base

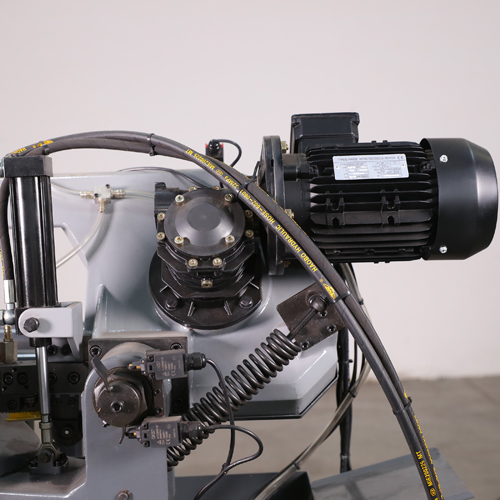

Main drive system
Clamping device
Feeding device
Saw frame
Guiding device
Saw frame connection device
Saw blade tension
Cooling system and chip sweeper
Hydraulic system
Electrical control system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor SHUOLI
2 Hydraulic motor CHUAN YUE
3 Turbine box LIZHI
4 Belt specification B1180Li
5 Solenoid Valve YU KEN
6 Solenoid Model DSG-01-2B2-DC24-N1-50

DSG-01-3C2-DC24-N1-50

7 Electrical Component TIANZHENG

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine
Blade cleaning brush.
Working light
Manual feed roller
Length stopper
One piece of bi-metal saw blade
One set of tools with tool box

Optional Parts and Optional Equipment
Bundle cutting
Roller stock table 2M long
Inverter
