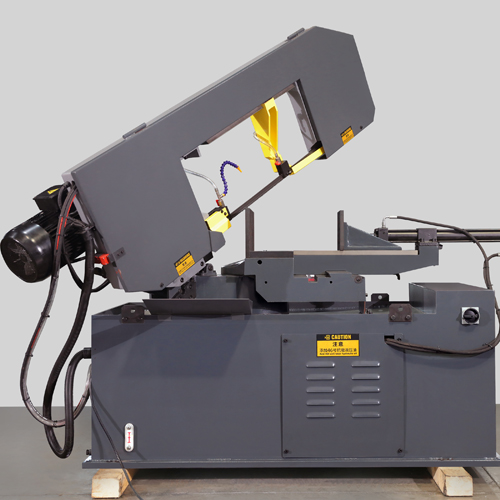

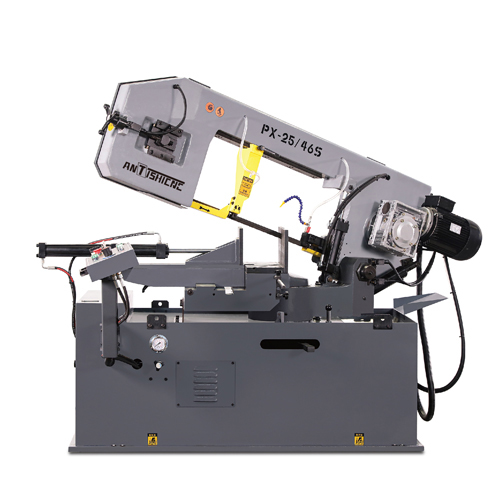

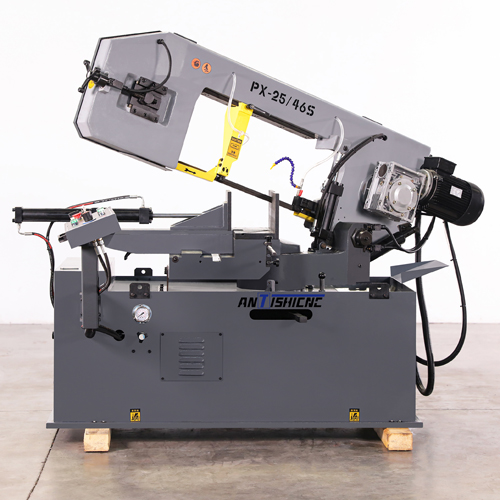

Semi-Automatic Scissor-Type Rotary Cutting Metal Band Sawing Machine PX-25/46S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Specifications PX-25/46S
Cutting capacity (length x width) 90°:     330mm 460x250mm

Right 45°: 305mm 305x250mm

Right 60°: 205mm 205x250mm

Left 45°:  305mm 305x250mm

Blade speed 40/80  M/Min  50HZ
Saw blade size 27×0.9x3960mm
Saw blade tension type Manual
Main motor power 1.5/2.2kw
Drive Gear
Packing size 231x107x163cm
N.W/G.W 900/1060kg

This machine tool is mainly used for sawing large mold materials, forgings, profiles, empty tubes and other materials, and can be
adapt to the sawing processing of various ferrous metal materials. It is characterized by high cutting efficiency, energy saving, narrow saw kerf, energy saving and material saving, and simple operation.
This machine tool adopts scissor type structure to ensure the reliability, stability and advancement of the structure, and each part of the function has enough margin, and also ensures the high quality sawing precision.

Main components
Base
Main drive system
Clamping device
Feeding device
Saw frame
Guiding device
Saw frame connection device
Saw blade tension
Cooling system and chip sweeper
Hydraulic system

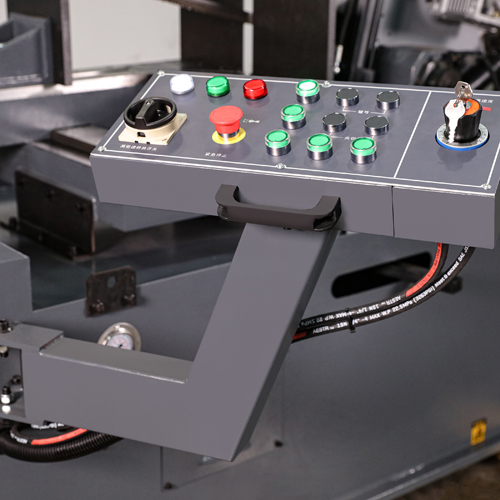

Electrical control system

Main Parts for the saw machine

Main Configuration Schedule
NO. Name Brand
1 Main motor NIFENG
2 Hydraulic motor GEYAO
3 Water pump motor ZAIZE
4 Solenoid WEI XIN GAO KE
5 Transformer TIANZHENG
6 Alternating current contactor CHINT
7 Thermal Overload Relay CHINT
8 Contact Relay CHINT
9 Miniature Circuit Breaker CHINT
10 Switch Push buttons CHINT

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

Standard Equipment of the saw machine
Blade cleaning brush.
Length stopper
One piece of bi-metal saw blade.
One unit tools
Operating tools
Operator manual

Optional Parts and Optional Equipment

Machine Type  Model Remark
BAHCO Band Saw Blade 3999- 27 HSS steel

Band with M51 teeth

3999-34
3999-41
3999-54
3999-67
3999-80
Mondragon Band Saw Blade



27 HSS steel

Band with M42 teeth

34
41
Roller rack
