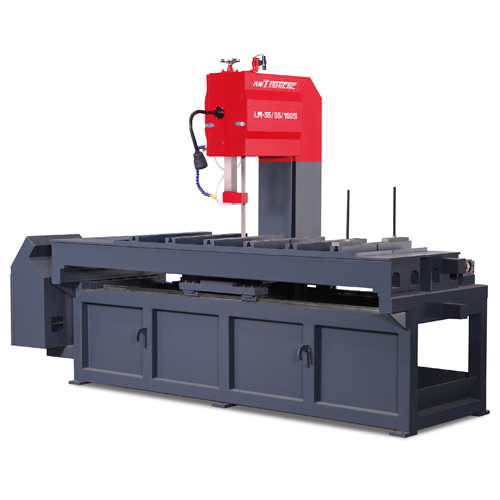

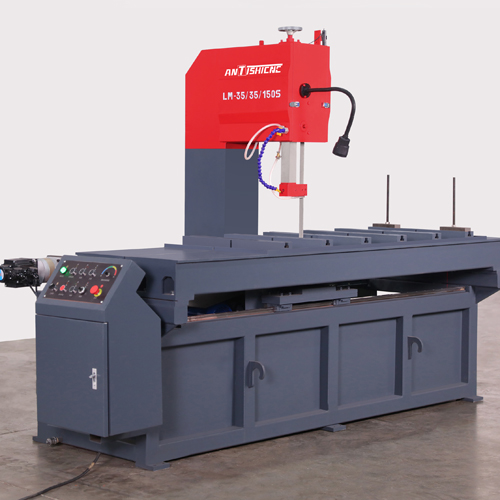

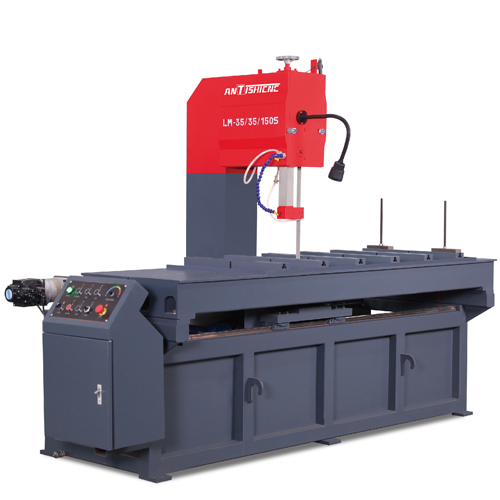

Semi-Automatic Vertical Cutting Metal Band Sawing Machine LM-35/35/150S

Many years of production experience, high-quality machines

Factory direct sales, welcome to visit the factory

24-hour telephone, email online service.

No installation required, simple operation, support video teaching

Technical Parameter LM-35/35/150S
Max.cutting capacity
Height 350mm
Throat 350mm
Length 1500mm
Saw blade
Speed 15-80 m/min
Size 3860*34*1.1mm
Motor output
Blade 3kw
Coolant 40w
Multiple feed Hydraulic control movement
Work Vice Manual
Size 3100*1100*2100mm
Weight 1517kg

This series of metal band sawing machines is a metal band sawing machine that integrates mechanical, electrical, hydraulic, cooling and lubrication devices. The equipment is mainly suitable for sawing graphite plates, bars, etc. It has the advantages of narrow sawing, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
1. The main machine adopts the main motor to cooperate with the transmission device and the pulley to drive the saw wheel to perform circular sawing operation, and the output is stable.
2. The worktable is guided by linear guide rails, with low friction, good wear resistance, stable movement of the saw frame and high precision.
3. The feed of the saw frame is completed by servo motor + screw rod.
4. The guide arm can be adjusted up and down to meet the requirements of sawing materials of different heights.
5. The cooling device adopts the upper and lower guide parts and the sawing parts to set cooling points respectively.
6. The saw blade adopts hydraulic tension.
7. The electrical and hydraulic systems of the machine tool have good safety protection devices.
8. The inspection of the sawing machine can be accepted according to the factory certificate of the sawing machine, and the rest are inspected according to the national standard.
9. The hydraulic and electrical system has good heat dissipation function and can work normally in the environment of 0℃~40℃.
10. Machine tool noise ≤85dba.

Structures
1. Base
2. Main drive system
3. Saw blade tensioning device
4. Saw frame
5. Saw blade guide
6. Saw frame feeding device
7. Internal and external workbenches
8. Cooling system
9. Electrical system

Main Parts for the saw machine

NO. Part Description Brand/Origin
1 Main motor DASU
2 Worm gear reducer HONGBO
3 Servo motor YOUKUN
4 Planetary Reduction Gear KEBANG
5 Water pump BOHAO
6 Transformer TIANZHENG
7 AC contactor TIANZHENG
8 Linear guide CHINA
9 Mechanical Parts

Hydraulic Pipes

CHINA
10 Worm gear box CHINA
11 PLC CHINA
12 Touch screen CHINA
13 Inverter CHINA
