Vertical metal band saws in the aluminum processing industry

Vertical metal band saws are very commonly used, in addition to cutting carbon structural steel, low alloy steel, high alloy, special alloy steel and stainless steel, acid-resistant steel and other types of alloys and metal materials, but also can cut aluminum.

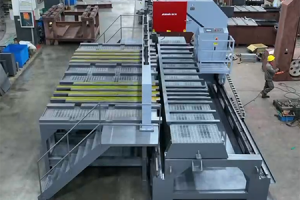

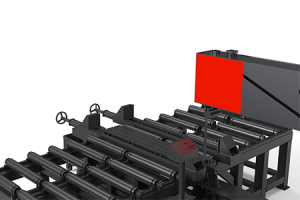

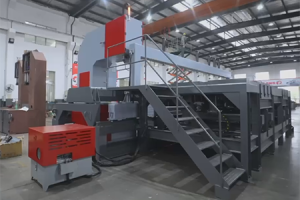

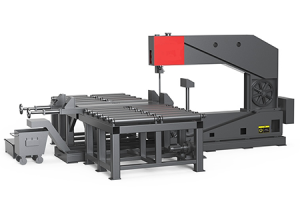

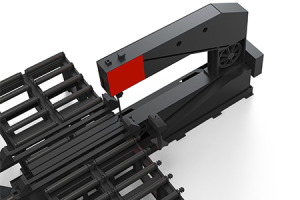

Recently, the Shanghai ANTISHICNC team received an inquiry from a metal fabrication manufacturer. The customer needs to cut the aluminum plate with the size of 2000mmx4000mmx200mm into any specifications and needs the automatic feeding function. The customer was very interested in the vertical metal band saw, according to the customer’s needs, we customized the vertical metal band saw VF-07/15/40NC to the customer.

The maximum cutting height of VF-07/15/40NC is 700mm, the throat depth is 1500mm, the stroke is 4000mm, and the linear speed of the saw blade is 500-2500m/min. The high linear speed is one of the main differences between the vertical band saws for aluminum plate and the general metal cutting vertical band saws. Aluminum plate is relatively soft, easy to deformation and adhesion in the cutting process, and easy to have burrs, so it needs to have a high line speed. Higher line speeds allow the saw blade to pass through the aluminum plate quickly, reducing the contact time between the cutter and the aluminum plate, thus reducing the risk of deformation and sticking of the aluminum plate. When cutting aluminum plate at high linear speeds, the cutting edge of the tool is able to cut through the aluminum plate material more quickly, reducing the plastic deformation of the aluminum plate at the break. This helps to reduce burrs and fretting, resulting in smoother and flatter edges of the cut aluminum sheet. When cutting thin aluminum plates, the high line speed effectively prevents bending or twisting of the aluminum plate during the cutting process and ensures the accuracy of the cut size.

The tensioning method of VF-07/15/40NC is hydraulic tensioning, automatic feeding, and automatic moving of working table, which can save a lot of time and manpower and improve working efficiency.

The following are the main parameters of the customized stroke of the device:

Model Name VF-07/15/40NC
Max.cutting capacity Height 700mm
Throat 1500mm
Length 4000mm
Cutout thickness ≦2.5mm
Saw blade Speed 500~2500m/min (Inverter)
Size Approx. 10500L x 41W x 1.3t(mm), subject to actual design
Tension Hydraulic
Motor output Saw Blade Reducer 45kw
Saw frame Servo motor+Reducer 3.7kw
Hydraulic station 7.5kw
Servo Servo motor+Reducer 2kw*2
Feed mode Servo Motor + Planetary Reducer + Rack & Pinion
Clamp tightening method Hydraulic motor + rack and pinion intensification
Saw Belt Drive Type Variable frequency motor + multiribbed pulley combination
Others Saw wheel diameter 830mm

Customers need to cut aluminum plate and carbon steel plate, cut aluminum plate needs high line speed, cut carbon steel plate is normal line speed, we suggest that customers buy two machines to cut different materials, at present, the program has been adopted by the customer.

If you have aluminum plate or other metal cutting needs, you can contact Shanghai ANTISHICNC team, Shanghai ANTISHICNC in the field of metal cutting has many years of experience, there will be a dedicated person to discuss with you.
